AD9026AD
12-BIT FLASH ADCManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
12 Bit Analog to Digital Converter 1 Input 1 Flash 28-CDIP
Additional Information
Series: AD9026RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |

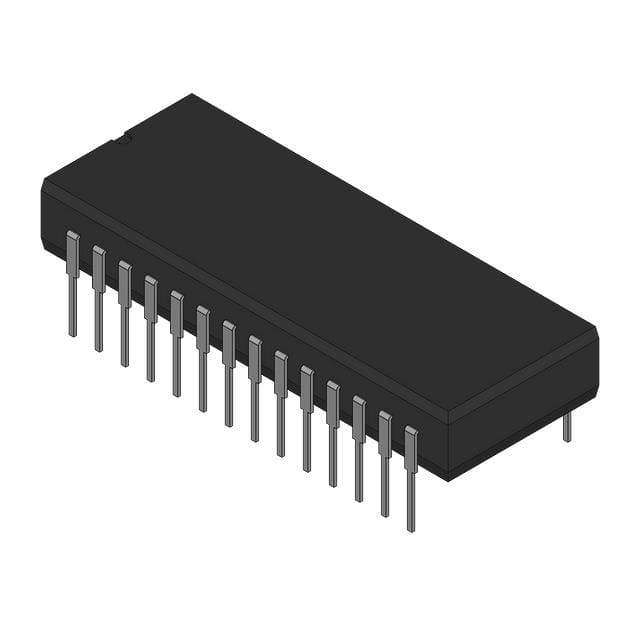

| Package / Case | 28-CDIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | - |
| Reference Type | Internal |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply, Analog | -4.95V ~ -5.45V, 4.75V ~ 5.25V |
| Voltage - Supply, Digital | -4.95V ~ -5.45V, 4.75V ~ 5.25V |
| Sampling Rate (Per Second) | 25.6M |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 28-CDIP |
| Architecture | FLASH |
| Ratio - S/H:ADC | 3:3 |
| Number of A/D Converters | 1 |
Request a Quote
