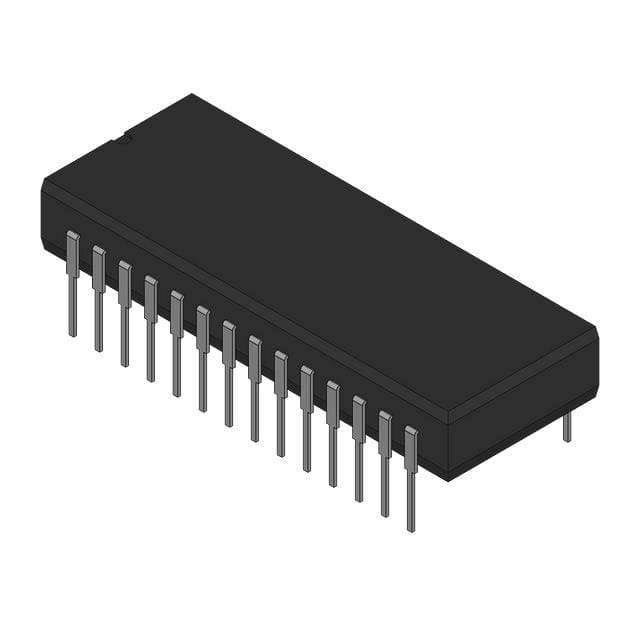

AD9022AZ
12-BIT ADC, PARALLEL WORD ACCESSManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD9022AZ is a 12-bit, 20 MSPS Analog to Digital Converter featuring a Flash architecture. This component offers parallel word access for data retrieval. The AD9022 series device is configured as a Sample-and-Hold Amplifier (S/H-ADC) with a ratio of 1:3. It supports both external and internal reference types and accepts a single-ended input. The device operates within an industrial temperature range of -20°C to 85°C. Power supply voltages for both analog and digital sections range from 4.75V to 5.25V and -4.94V to -5.95V. The AD9022AZ is supplied in a 28-lead Ceramic Dual In-line Package (CDIP) suitable for through-hole mounting. This component finds application in various industrial and instrumentation systems requiring high-speed analog-to-digital conversion.
Additional Information
Series: AD9022RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 28-CDIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -20°C ~ 85°C |
| Voltage - Supply, Analog | -4.94V ~ -5.95V, 4.75V ~ 5.25V |
| Voltage - Supply, Digital | -4.94V ~ -5.95V, 4.75V ~ 5.25V |
| Sampling Rate (Per Second) | 20M |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 28-CDIP |
| Architecture | FLASH |
| Ratio - S/H:ADC | 1:3 |
| Number of A/D Converters | 1 |
