AD9020KZ
IC ADC 10BIT 60MSPS 68-CLCCManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD9020 series 10-bit Analog-to-Digital Converter (ADC), part number AD9020KZ, offers a 60 MSPS sampling rate. This device features a single differential input and utilizes a FLASH architecture. The AD9020KZ provides a parallel data interface and requires an external reference. Its configuration includes one A/D converter with a 10-bit resolution. Supplied in a 68-CLCC package, this component is suitable for applications requiring high-speed data acquisition. Typical industries leveraging this technology include test and measurement, medical imaging, and telecommunications. The device operates with analog supply voltages ranging from ±4.75V to ±5.25V and digital supply voltages from ±4.75V to 5.25V.
Additional Information
Series: AD9020RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 68-CLCC |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | ADC |
| Data Interface | Parallel |
| Reference Type | External |
| Voltage - Supply, Analog | ±4.75V ~ ±5.25V |
| Voltage - Supply, Digital | ±4.75V ~ 5.25V |
| Sampling Rate (Per Second) | 60M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 68-CLCC (24.13x24.13) |
| Architecture | FLASH |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
Request a Quote
Clients Also Buy

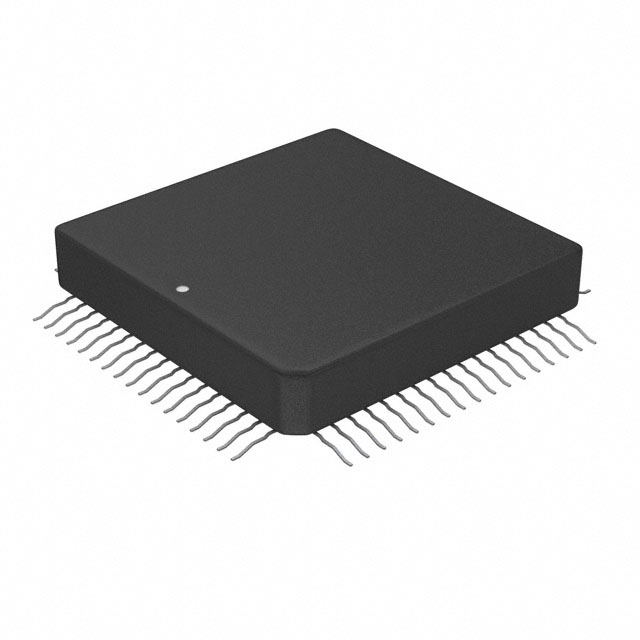

AD9020JZ
IC ADC 10BIT 60MSPS 68-CLCC
AD9020KJ
10-BIT 60 MSPS A/D CONVERTER

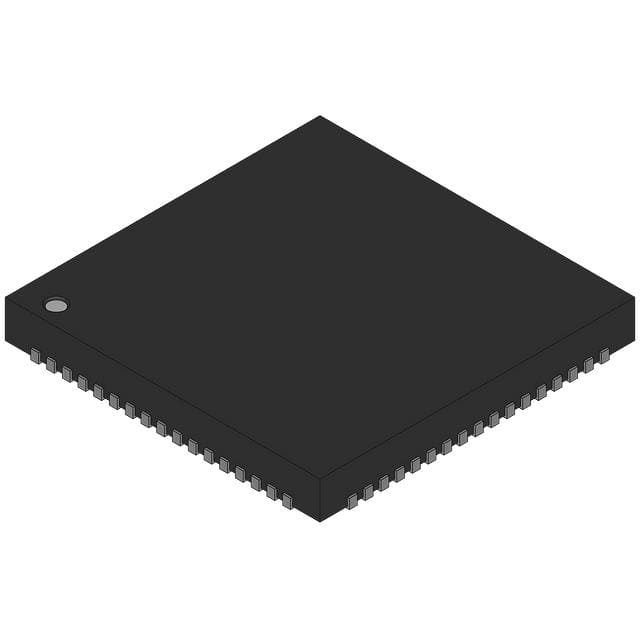

AD9020KE
