AD871SE/883B
12-BIT ADC, PARALLEL WORD ACCESSManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
12 Bit Analog to Digital Converter 12 Input 4 Pipelined 44-CLCC (16.55x16.55)
Additional Information
Series: AD871RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 44-CLCC |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply, Analog | ±4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| Sampling Rate (Per Second) | 5M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 12 |
| Supplier Device Package | 44-CLCC (16.55x16.55) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 3:4 |
| Number of A/D Converters | 4 |
Request a Quote
Clients Also Buy
AD871SD/883B
12-BIT ADC PARALLEL WORD ACCESS

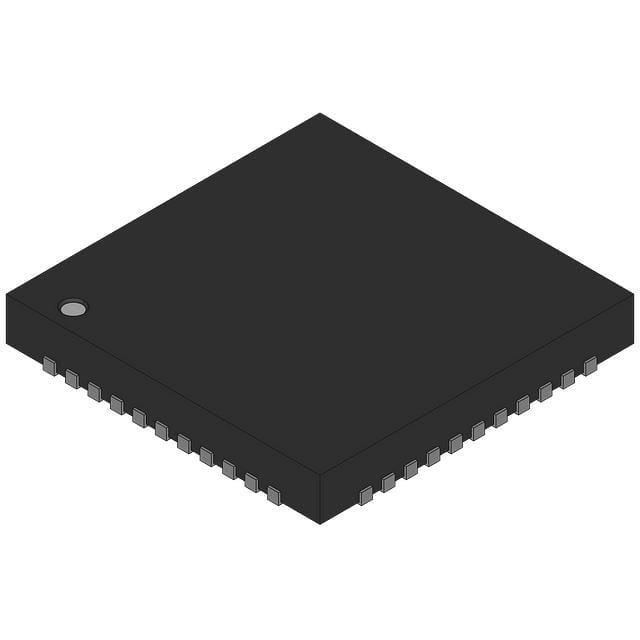

5962-9468602MYA
