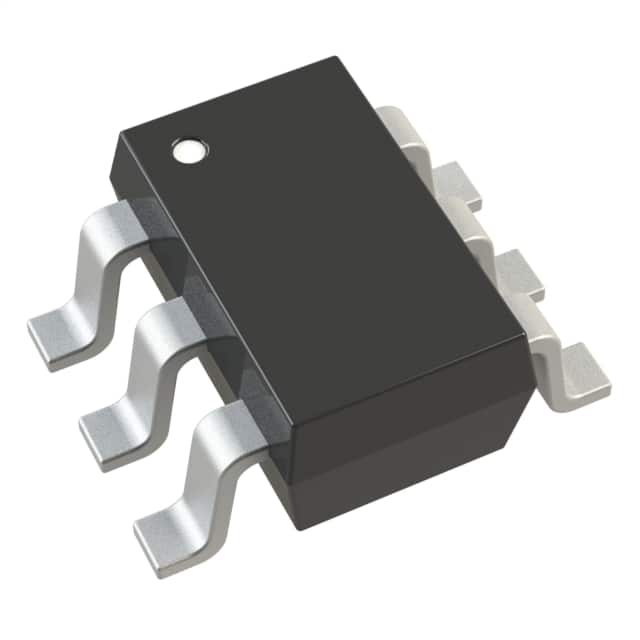

AD7920BKSZ-REEL
12-BIT 250KSPS,ADC SC70 PKG I.C.Manufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. AD7920BKSZ-REEL is a 12-bit successive approximation analog-to-digital converter (ADC) designed for efficient signal acquisition. This component features a single-ended input with a sample-and-hold amplifier, enabling a sampling rate of up to 250 kSPS. Data transfer is facilitated via a serial peripheral interface (SPI) or digital signal processor (DSP) compatible interface. Operating across an analog and digital supply voltage range of 2.35V to 5.25V, it maintains high precision with its 12-bit resolution. The SC-70-6 package is suitable for surface-mount applications, commonly found in industrial, medical, and portable electronics where space and power efficiency are critical. This device is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | SPI, DSP |
| Reference Type | Supply |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.35V ~ 5.25V |
| Voltage - Supply, Digital | 2.35V ~ 5.25V |
| Sampling Rate (Per Second) | 250k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | SC-70-6 |
| Architecture | SAR |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
