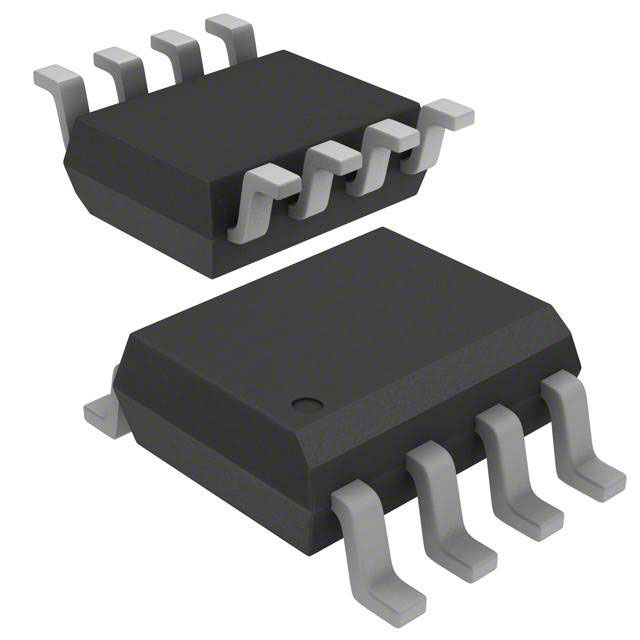

AD7893BR-10REEL7
IC ADC 12BIT SAR 8SOICManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD7893BR-10REEL7 is a 12-bit successive approximation analog-to-digital converter (ADC). This component features a single analog input and utilizes a Sample-and-Hold (S/H) circuit with a 1:1 ratio to the ADC. Data is transferred via an SPI serial interface. The device operates with analog and digital supply voltages of 5V and is housed in an 8-SOIC package suitable for surface mounting. Its operating temperature range is -40°C to 85°C. This ADC is commonly employed in industrial automation, data acquisition systems, and battery-powered instrumentation due to its efficient architecture and compact packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 8-SOIC (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | - |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 8-SOIC |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
