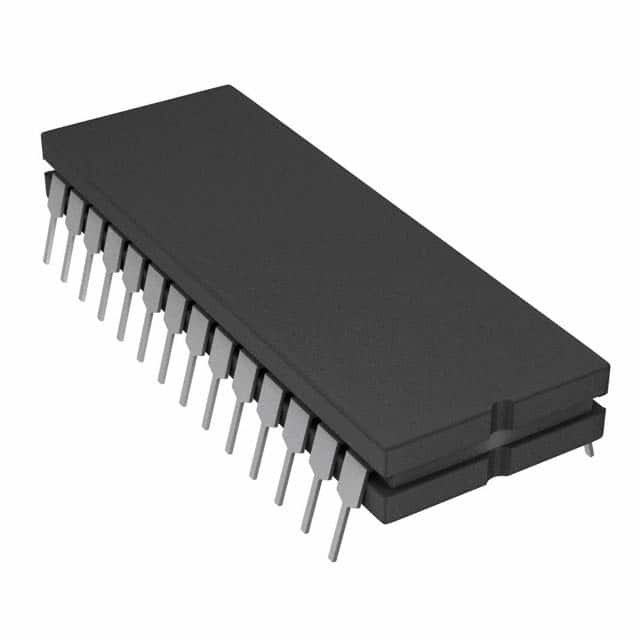

AD7878SQ
IC ADC 12BIT SAR 28CDIPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD7878SQ is a 12-bit, successive approximation analog-to-digital converter (ADC). This component features a single-ended input and a 1:1 sample-and-hold ratio. It utilizes an internal reference and offers a sampling rate of up to 100 kSPS. The AD7878SQ is housed in a 28-lead Ceramic Dual Inline Package (CDIP) suitable for through-hole mounting. It operates across a wide temperature range of -55°C to 125°C. Power requirements include analog supply voltages of ±5V and a digital supply voltage of 5V. The data interface is compatible with DSP systems. This ADC is commonly found in industrial control, data acquisition, and instrumentation applications requiring precise analog signal conversion.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 39 week(s)Product Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 28-CDIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | DSP |
| Reference Type | Internal |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply, Analog | ±5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 100k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 28-CDIP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
