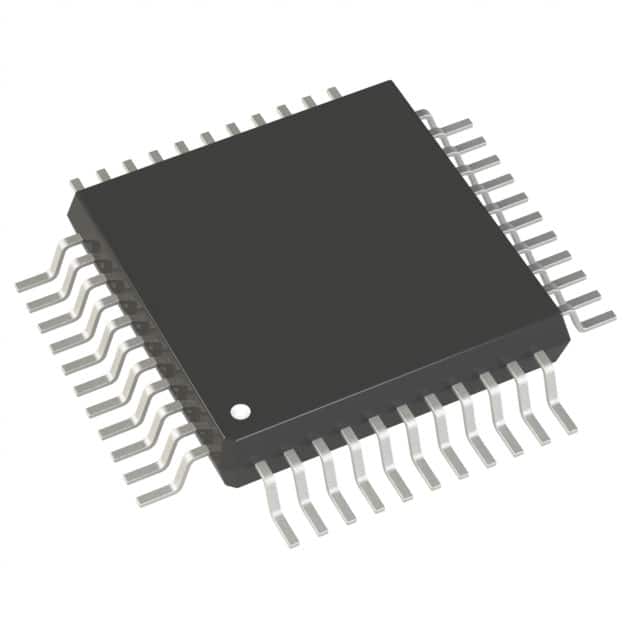

AD7864ASZ-1REEL
IC ADC 12BIT SAR 44MQFPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD7864ASZ-1REEL is a 12-bit, 4-channel, successive approximation Analog-to-Digital Converter (ADC). This device features simultaneous sampling, allowing for the acquisition of all four inputs within a single acquisition cycle. The AD7864ASZ-1REEL operates with a 520 kSPS sampling rate. It offers both external and internal voltage reference options, providing flexibility in system design. The component is housed in a 44-MQFP (10x10) surface-mount package and operates within an industrial temperature range of -40°C to 85°C. Its robust performance and multiple input channels make it suitable for applications in instrumentation, industrial automation, and medical equipment. The data interface is parallel, and the device is supplied on a tape and reel for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 44-QFP |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-MUX-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 520k |
| Input Type | Single Ended |
| Number of Inputs | 4 |
| Supplier Device Package | 44-MQFP (10x10) |
| Architecture | SAR |
| Ratio - S/H:ADC | 4:1 |
| Number of A/D Converters | 1 |
