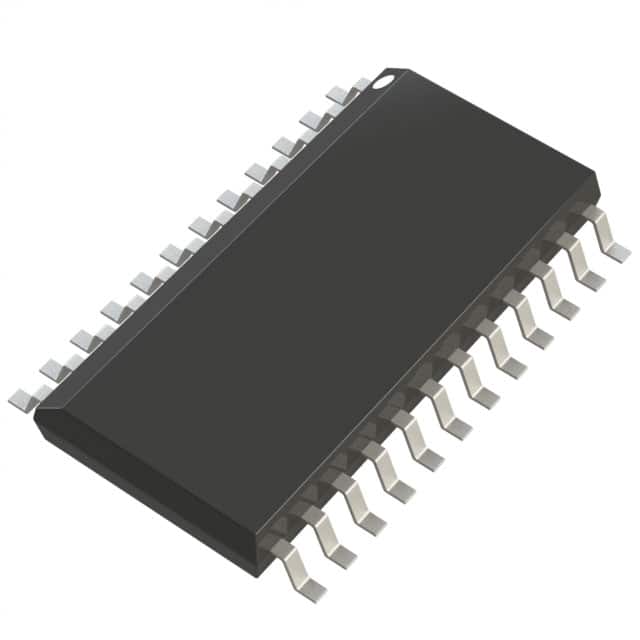

AD7856AR
IC ADC 14BIT SAR 24SOICManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD7856AR is a 14-bit, successive approximation analog-to-digital converter (ADC) designed for high-performance data acquisition. This device features selectable input ranges, accommodating either 4 single-ended or 8 pseudo-differential inputs through an integrated multiplexer. With a sampling rate of up to 285 kSPS, the AD7856AR utilizes an SPI-compatible serial interface for data transfer. It offers both internal and external voltage reference options, providing flexibility in system design. The architecture includes a sample-and-hold circuit with a 1:1 ratio. This component is housed in a 24-lead SOIC package, suitable for surface mounting. Applications for the AD7856AR are found in industrial control, instrumentation, and automotive systems requiring precise analog signal conversion. The operating temperature range is -40°C to 105°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 24-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 285k |
| Input Type | Pseudo-Differential, Single Ended |
| Number of Inputs | 4, 8 |
| Supplier Device Package | 24-SOIC |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
