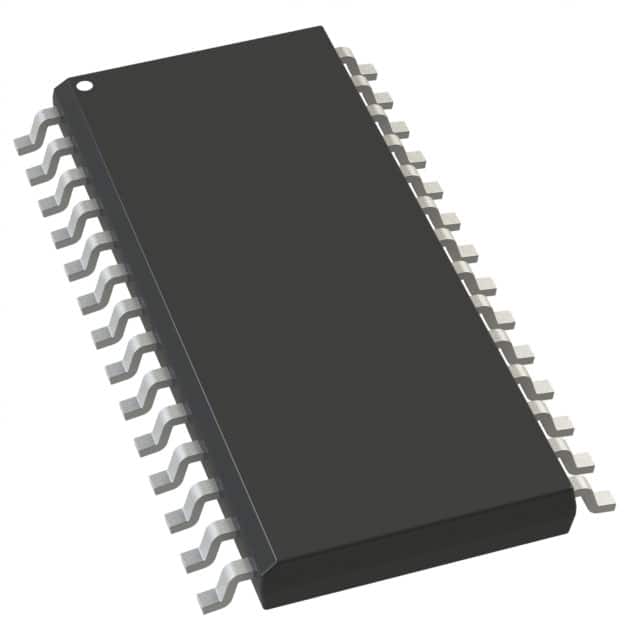

AD7829BRUZ-REEL
IC ADC 8BIT PIPELINED 28TSSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD7829BRUZ-REEL is an 8-bit, 8-input pipelined analog-to-digital converter. This surface-mount component, housed in a 28-TSSOP package, features a parallel data interface and supports both external and internal voltage references. The AD7829BRUZ-REEL offers a sampling rate of up to 2 MSPS, with a single-ended input configuration and a multiplexer followed by a sample-and-hold amplifier before the pipelined ADC core. It operates across analog and digital supply voltages from 2.7V to 3.3V and 5V, with an operating temperature range of -40°C to 85°C. This device is commonly utilized in industrial automation, medical instrumentation, and telecommunications applications requiring efficient analog-to-digital conversion. The component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Configuration | MUX-S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.3V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 3.3V, 5V |
| Sampling Rate (Per Second) | 2M |
| Input Type | Single Ended |
| Number of Inputs | 8 |
| Supplier Device Package | 28-TSSOP |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
