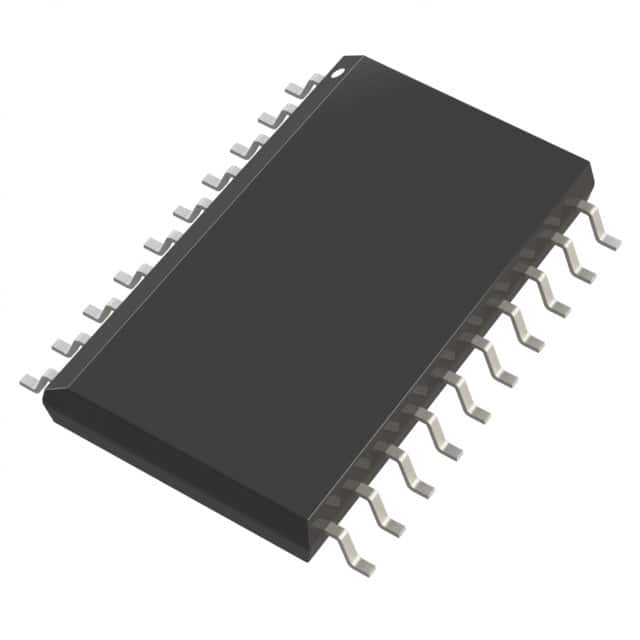

AD7822BRZ-REEL7
IC ADC 8BIT PIPELINED 20SOICManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD7822BRZ-REEL7 is an 8-bit pipelined analog-to-digital converter (ADC) designed for high-speed data acquisition. This component features a single-ended input and a parallel data interface, enabling efficient data transfer. The AD7822BRZ-REEL7 operates with analog and digital supply voltages ranging from 2.7V to 5V and offers a sampling rate of up to 2 MSPS. Its pipelined architecture ensures accurate conversion across its specified operating temperature range of -40°C to 85°C. Packaged in a 20-SOIC (0.295", 7.50mm Width) format, this device is suitable for surface mount applications. It is commonly utilized in industrial instrumentation, medical electronics, and telecommunications equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Configuration | MUX-S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.3V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 3.3V, 5V |
| Sampling Rate (Per Second) | 2M |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 20-SOIC |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
