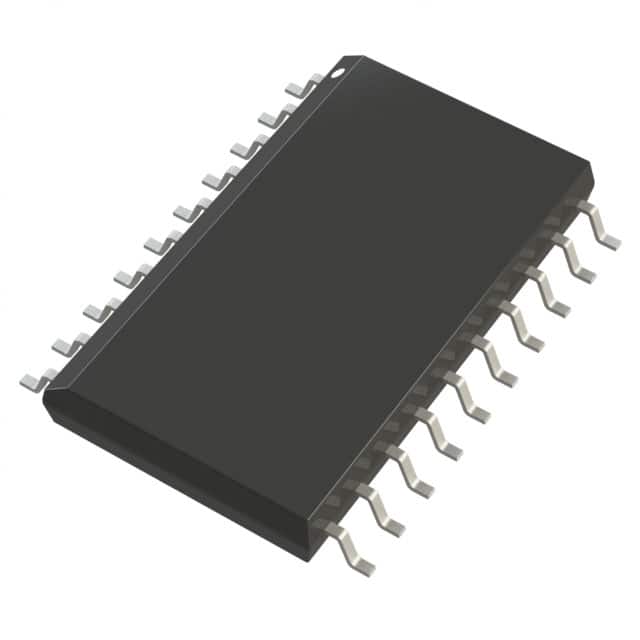

AD7822BRZ-REEL
IC ADC 8BIT PIPELINED 20SOICManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD7822BRZ-REEL is an 8-bit pipelined analog-to-digital converter. This component features a single-ended input and a 1:1 S/H to ADC ratio. The AD7822BRZ-REEL offers a sampling rate of 2 MSPS and supports both external and internal voltage references. Its data interface is parallel, and it is housed in a 20-SOIC surface-mount package. This device operates across an analog and digital supply voltage range of 2.7V to 3.3V and 5V. The AD7822BRZ-REEL is suitable for applications in industrial and data acquisition systems. The component is supplied in a tape and reel package.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Configuration | MUX-S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.3V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 3.3V, 5V |
| Sampling Rate (Per Second) | 2M |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 20-SOIC |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
