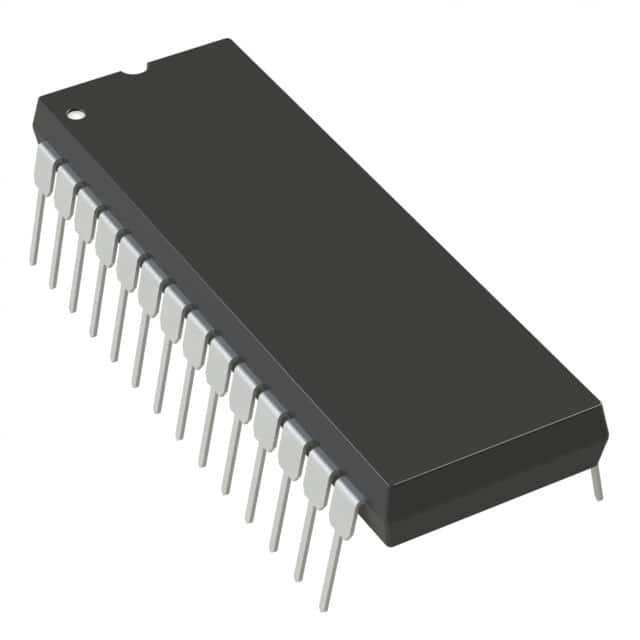

AD779KNZ
IC ADC 14BIT 28DIPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD779KNZ is a 14-bit analog-to-digital converter (ADC) featuring a single-ended input configuration and a 1:1 S/H to ADC ratio. This component, packaged in a 28-DIP (0.600" wide) through-hole mount, operates with analog supply voltages of ±12V and a digital supply of 5V. It offers a sampling rate of up to 128KSPS and supports both external and internal reference types. The AD779KNZ is suitable for applications in industrial instrumentation and data acquisition systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 28-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | ±12V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 128K |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 28-PDIP |
| Architecture | - |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
