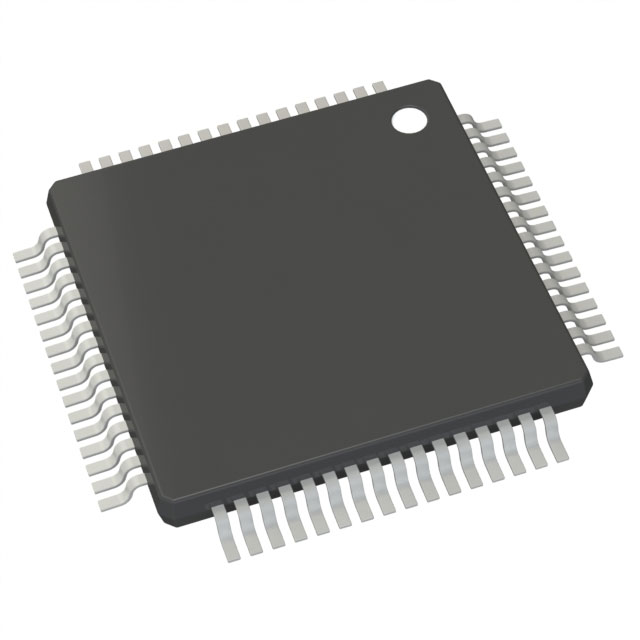

AD7763BSVZ-REEL
IC ADC 24BIT SIGMA-DELTA 64TQFPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD7763BSVZ-REEL is a 24-bit sigma-delta analog-to-digital converter. This single-channel device features a differential input and supports both I2S and SPI data interfaces. With an impressive sampling rate of up to 625 kSPS, it is well-suited for high-precision measurement applications. The AD7763BSVZ-REEL operates with analog supply voltages of 2.5V and 3.15V to 5.25V, and a digital supply of 2.5V. It requires an external reference voltage. Packaged in a 64-lead TQFP_EP (10x10) on tape and reel, this component is ideal for applications in industrial, medical, and instrumentation sectors where accurate signal acquisition is critical. The exposed pad enhances thermal performance.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 64-TQFP Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 24 |
| Configuration | ADC |
| Data Interface | I2S, SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.5V, 3.15V ~ 5.25V |
| Voltage - Supply, Digital | 2.5V |
| Sampling Rate (Per Second) | 625k |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 64-TQFP-EP (10x10) |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
