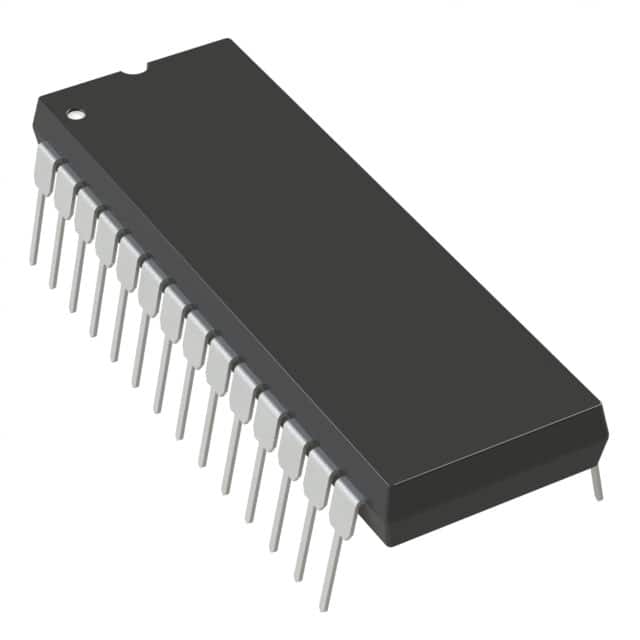

AD7721ANZ
IC ADC 16BIT SIGMA-DELTA 28DIPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD7721ANZ is a 16-bit Sigma-Delta Analog-to-Digital Converter (ADC) featuring a 28-pin PDIP package. This device offers selectable resolutions of 12 or 16 bits, with sampling rates up to 468.75kSPS. It accepts a single differential analog input and utilizes an external reference. The AD7721ANZ supports both SPI and parallel data interfaces, facilitating integration into various digital systems. Designed for through-hole mounting, this component operates within a temperature range of -40°C to 85°C and requires analog and digital supply voltages of 5V. Its capabilities make it suitable for applications in industrial instrumentation and data acquisition systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 28-DIP (0.600"", 15.24mm) |
| Mounting Type | Through Hole |
| Number of Bits | 12, 16 |
| Configuration | ADC |
| Data Interface | SPI, Parallel |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 312.5k, 468.75k |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 28-PDIP |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
