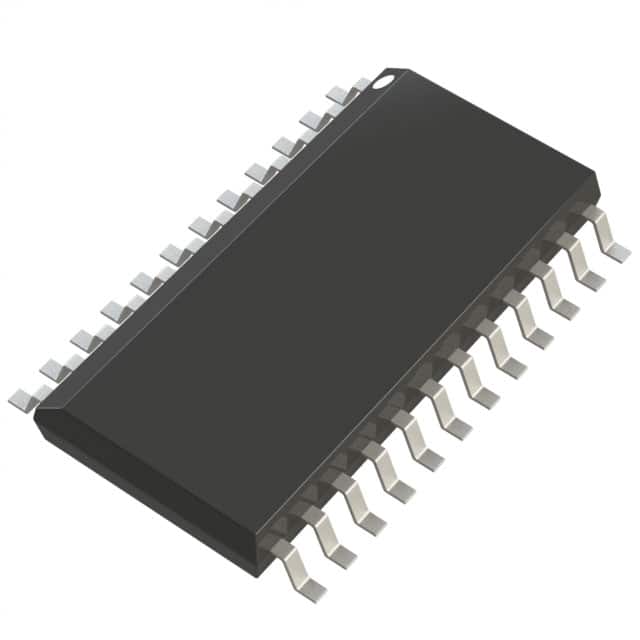

AD7712ARZ-REEL
IC ADC 24BIT SIGMA-DELTA 24SOICManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD7712ARZ-REEL is a 24-bit sigma-delta Analog-to-Digital Converter (ADC) designed for precision measurement applications. This component features a single-ended or differential input with an integrated Programmable Gain Amplifier (PGA), allowing for flexible signal conditioning. The device utilizes a sigma-delta architecture, delivering high resolution and linearity suitable for demanding industrial and instrumentation systems. Data is communicated via a serial SPI interface. The AD7712ARZ-REEL is supplied in a 24-SOIC package on tape and reel, intended for surface-mount assembly. It operates with analog supply voltages ranging from 5V to 10V and a digital supply of 5V, with an operating temperature range of -40°C to 85°C. This ADC is commonly found in process control, weigh scales, and medical instrumentation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | PGA |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 24 |
| Configuration | MUX-PGA-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V ~ 10V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 1k |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 24-SOIC |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
