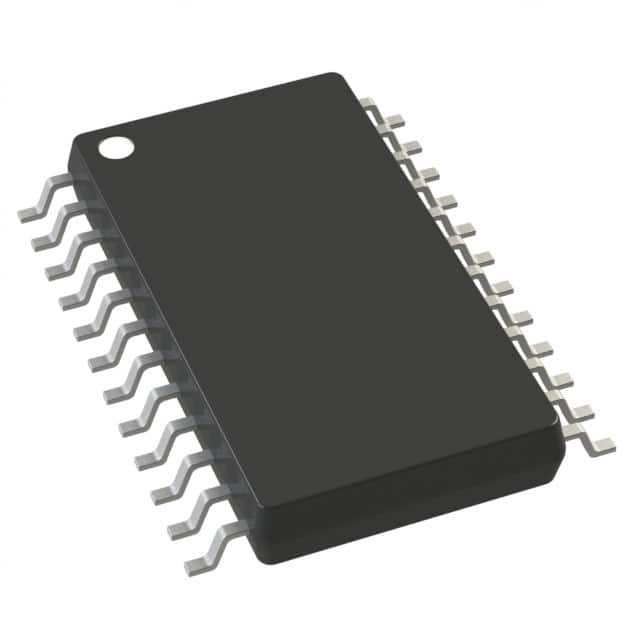

AD7709BRUZ-REEL
IC ADC 16BIT SIGMA-DELTA 24TSSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD7709BRUZ-REEL is a 16-bit sigma-delta analog-to-digital converter. This component features a multiplexer, programmable gain amplifier (PGA), and ADC architecture, supporting both differential and pseudo-differential input types. It offers 2 or 4 selectable input channels. The device communicates via SPI and DSP interfaces. The AD7709BRUZ-REEL is housed in a 24-TSSOP package and is supplied on tape and reel for surface mounting. It operates with analog and digital supply voltages ranging from 2.7V to 3.3V and 5V. The operating temperature range is -40°C to 85°C. This converter is utilized in applications requiring precise signal acquisition, including industrial instrumentation and process control systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | PGA |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | MUX-PGA-ADC |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 3.3V, 5V |
| Voltage - Supply, Digital | 2.7V ~ 3.3V, 5V |
| Sampling Rate (Per Second) | 105 |
| Input Type | Differential, Pseudo-Differential |
| Number of Inputs | 2, 4 |
| Supplier Device Package | 24-TSSOP |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
