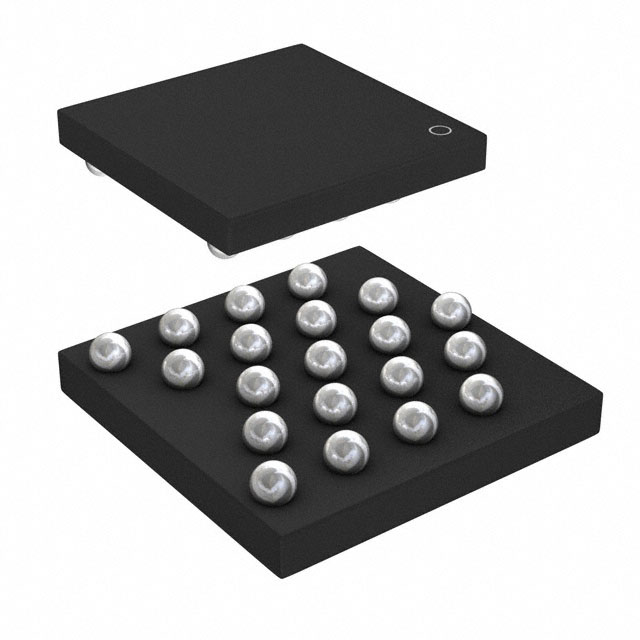

AD7689BCBZ-RL7
IC ADC 16BIT SAR 20WLCSPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
16 Bit Analog to Digital Converter 8 Input 1 SAR 20-WLCSP (2.39x2.39)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Sensor |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-UFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI, DSP |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.3V ~ 5.5V |
| Voltage - Supply, Digital | 1.8V ~ 5.5V |
| Sampling Rate (Per Second) | 250k |
| Input Type | Differential, Pseudo-Differential, Single Ended |
| Number of Inputs | 8 |
| Supplier Device Package | 20-WLCSP (2.39x2.39) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
Request a Quote
