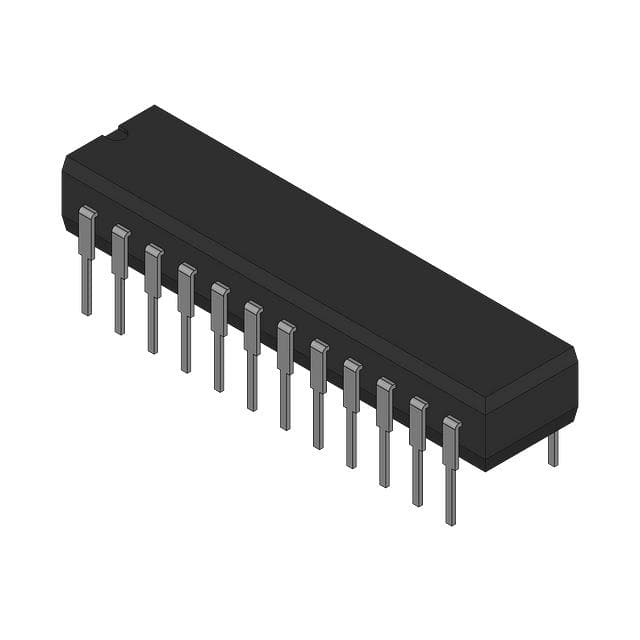

AD7672UQ10
12-BIT SAR 2 CHANNEL ADCManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
12 Bit Analog to Digital Converter 1 Input 1 24-CDIP
Additional Information
Series: LC²MOSRoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 24-CDIP (0.300"", 7.62mm) |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Configuration | - |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| Sampling Rate (Per Second) | - |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 24-CDIP |
| Architecture | - |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
