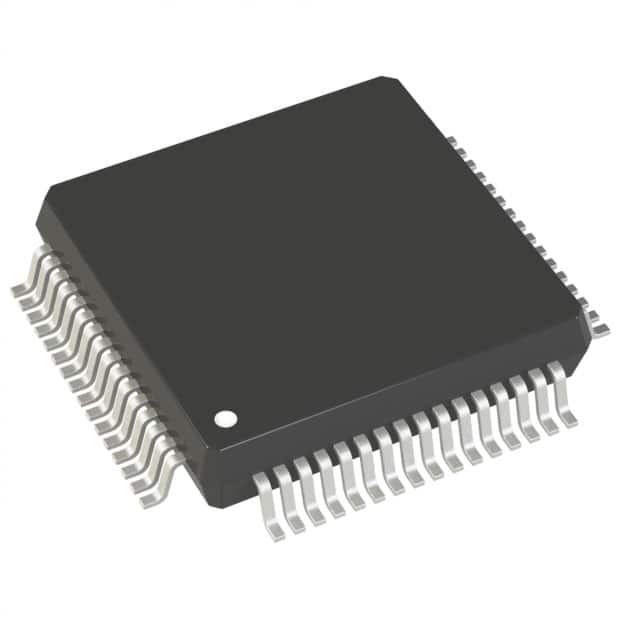

AD7656A-1BSTZ-RL
IC ADC 16BIT SAR 64LQFPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. iCMOS® series AD7656A-1BSTZ-RL is a 16-bit analog-to-digital converter. This device features six input channels and a successive approximation register (SAR) architecture, offering simultaneous sampling capabilities. The AD7656A-1BSTZ-RL provides true bipolar operation and supports both SPI and parallel data interfaces, making it suitable for integration with DSP systems. It operates with analog and digital supply voltages of 5V and has a sampling rate of 250kSPS per channel. The component is housed in a 64-LQFP (10x10) package and is supplied on tape and reel. This converter is commonly utilized in industrial automation, instrumentation, and data acquisition systems.
Additional Information
Series: iCMOS®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling, True Bipolar |
| Packaging | Tape & Reel (TR) |
| Package / Case | 64-LQFP |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | SPI, Parallel, DSP |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 250k |
| Input Type | Single Ended |
| Number of Inputs | 6 |
| Supplier Device Package | 64-LQFP (10x10) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 6 |
Request a Quote
