AD7655ACPZRL
IC ADC 16BIT SAR 48LFCSPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. PulSAR® AD7655ACPZRL is a 16-bit, 2-channel (or 4-channel pseudo-differential) analog-to-digital converter. This successive approximation register (SAR) ADC boasts a sampling rate of up to 1 MSPS, featuring a flexible input multiplexer with simultaneous sample-and-hold capability. It offers both SPI and parallel/DSP data interfaces, enabling seamless integration into various system architectures. The device operates with analog and digital supply voltages of 5V and requires an external reference. Packaged in a 48-lead LFCSP-VQ (7x7mm), the AD7655ACPZRL is suitable for surface-mount applications and operates across a temperature range of -40°C to 85°C. Its robust performance makes it ideal for demanding applications in industrial, instrumentation, and data acquisition systems.
Additional Information
Series: PulSAR®RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |

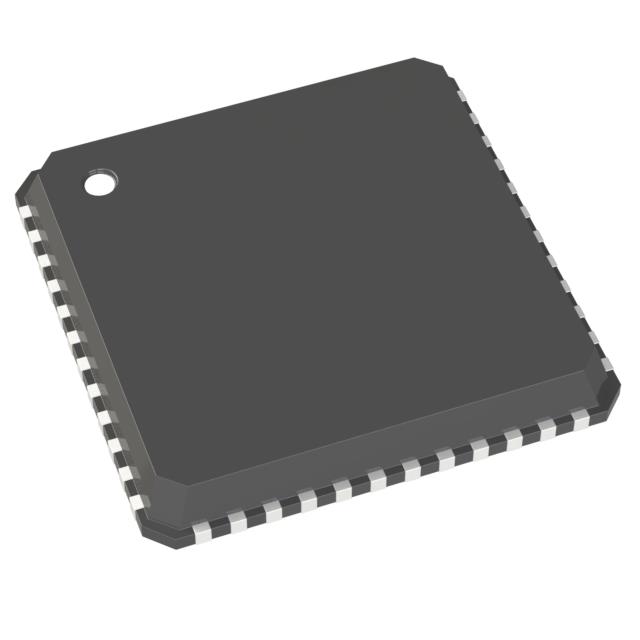

| Package / Case | 48-VFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | MUX-S/H-MUX-ADC |
| Data Interface | SPI, Parallel, DSP |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 1M |
| Input Type | Pseudo-Differential, Single Ended |
| Number of Inputs | 2, 4 |
| Supplier Device Package | 48-LFCSP-VQ (7x7) |
| Architecture | SAR |
| Ratio - S/H:ADC | 2:1 |
| Number of A/D Converters | 1 |
