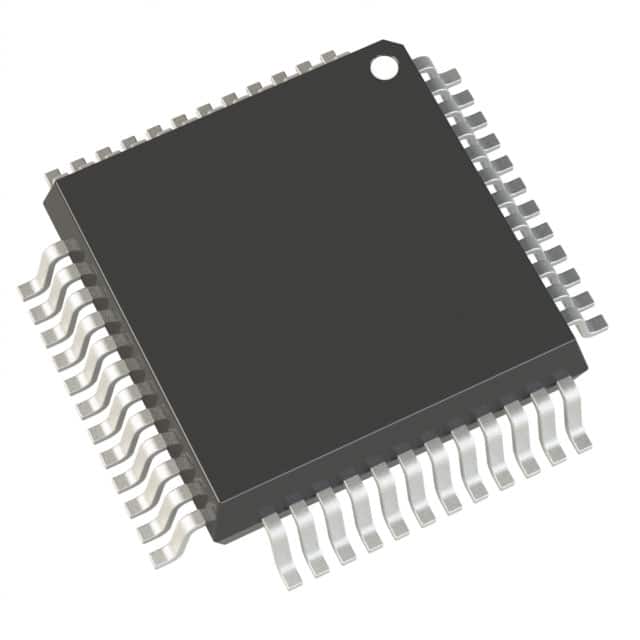

AD7631BSTZRL
IC ADC 18BIT SAR 48LQFPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. PulSAR® series AD7631BSTZRL is an 18-bit successive approximation analog-to-digital converter (ADC). This component features a single differential input and a 1:1 S/H-to-ADC ratio, enabling a sampling rate of up to 250 kSPS. The AD7631BSTZRL offers flexible data interfacing via SPI, Parallel, and DSP protocols. It operates with analog and digital supply voltages of 5V and supports both external and internal voltage references. Packaged in a compact 48-LQFP (7x7mm) surface-mount format, this device is suitable for applications requiring high precision in demanding environments, with an operating temperature range of -40°C to 85°C. This ADC is commonly utilized in industrial automation, test and measurement equipment, and medical instrumentation.
Additional Information
Series: PulSAR®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-LQFP |
| Mounting Type | Surface Mount |
| Number of Bits | 18 |
| Configuration | S/H-ADC |
| Data Interface | SPI, Parallel, DSP |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 250k |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 48-LQFP (7x7) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
