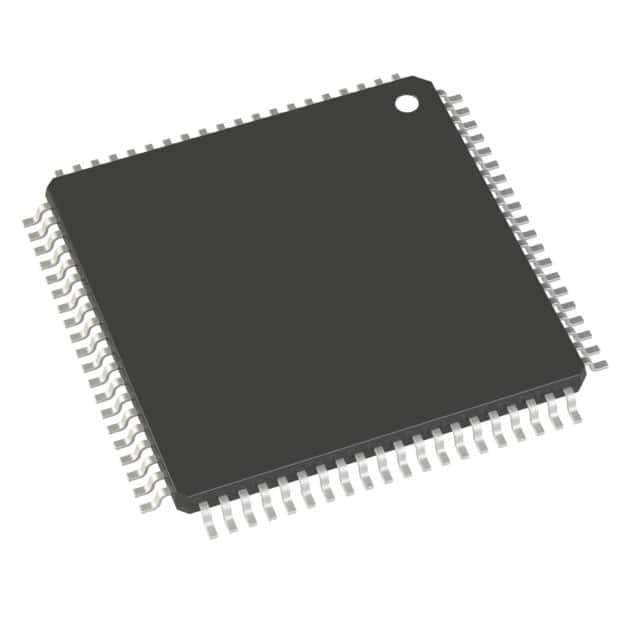

AD7616-PBSTZ-RL
IC ADC 16BIT SAR 80LQFPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. presents the AD7616-PBSTZ-RL, a 16-bit successive approximation analog-to-digital converter (ADC). This component features 16 single-ended inputs, configurable with dual successive approximation register (SAR) ADCs, enabling simultaneous sampling. The device offers a robust parallel data interface and is housed in an 80-LQFP package suitable for surface mounting. Operating across an industrial temperature range of -40°C to 125°C, the AD7616-PBSTZ-RL supports analog supply voltages from 4.75V to 5.25V and digital supply voltages from 2.3V to 3.6V. With a sampling rate of up to 1MSPS per channel and integrated external/internal reference options, this ADC is well-suited for demanding applications in industrial automation, test and measurement, and data acquisition systems. The component is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 80-LQFP |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | MUX-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 2.3V ~ 3.6V |
| Sampling Rate (Per Second) | 1M |
| Input Type | Single Ended |
| Number of Inputs | 16 |
| Supplier Device Package | 80-LQFP (14x14) |
| Architecture | SAR |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 2 |
