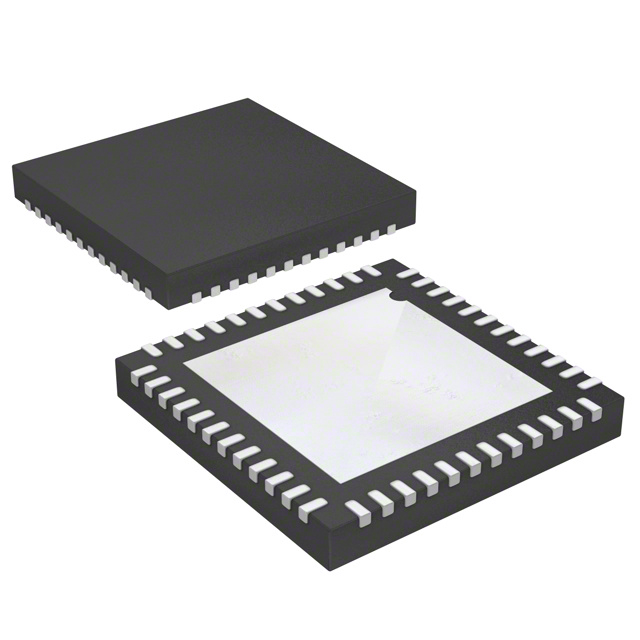

AD7612BCPZ-RL
IC ADC 16BIT SAR 48LFCSPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD7612BCPZ-RL is a 16-bit successive approximation analog-to-digital converter (ADC) from the iCMOS® and PulSAR® series. This single-channel SAR ADC features a 750 kSPS sampling rate and a true bipolar input. It supports both SPI and parallel/DSP data interfaces, offering flexibility in system integration. The device utilizes a 1:1 S/H:ADC ratio and can accommodate external or internal voltage references. Designed for surface mounting, it is supplied in a 48-LFCSP-VQ (7x7) package on tape and reel. Operating across an industrial temperature range of -40°C to 85°C, the AD7612BCPZ-RL is suitable for applications in data acquisition systems, industrial automation, and instrumentation. Analog supply voltage is 5V, and digital supply voltage is also 5V.
Additional Information
Series: iCMOS®, PulSAR®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | True Bipolar |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | SPI, Parallel, DSP |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | 750k |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 48-LFCSP-VQ (7x7) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
