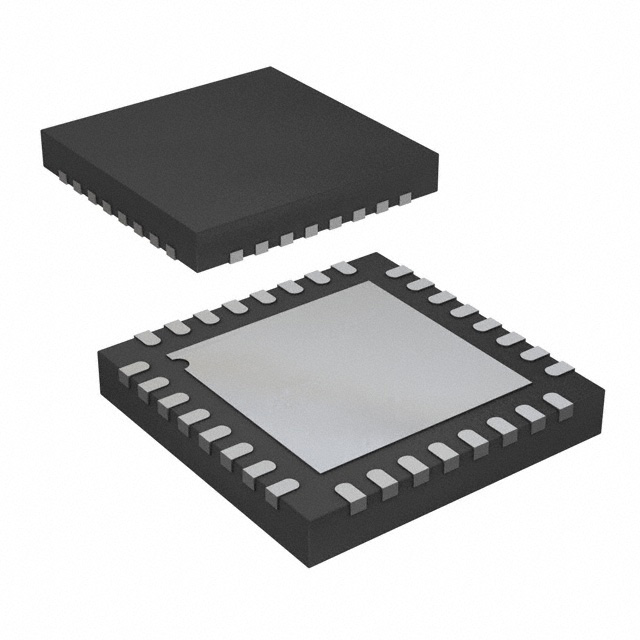

AD7490BCPZ-REEL7
IC ADC 12BIT SAR 32LFCSPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
12 Bit Analog to Digital Converter 16 Input 1 SAR 32-LFCSP-VQ (5x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 32-VFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | MUX-S/H-ADC |
| Data Interface | DSP, MICROWIRE™, QSPI™, and SPI™ |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 1M |
| Input Type | Single Ended |
| Number of Inputs | 16 |
| Supplier Device Package | 32-LFCSP-VQ (5x5) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Grade | - |
| Number of A/D Converters | 1 |
| Qualification | - |
