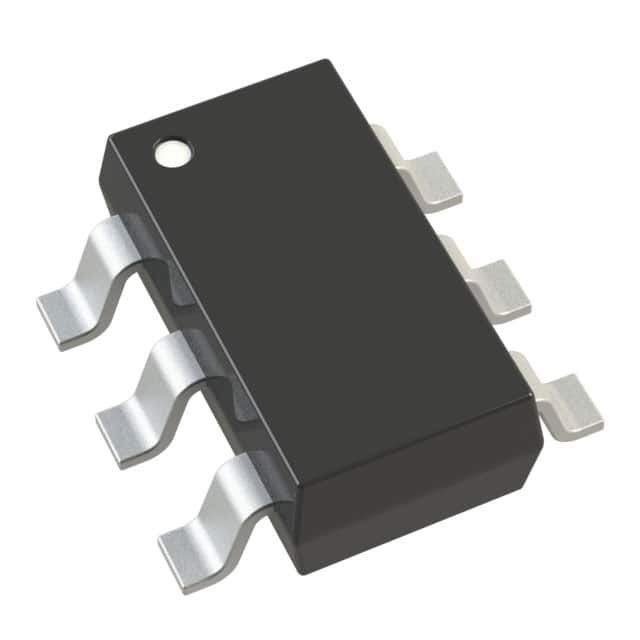

AD7476SRTZ-REEL
IC ADC 12BIT SAR SOT23-6Manufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD7476SRTZ-REEL is a 12-bit successive approximation analog-to-digital converter (ADC) featuring a single-ended input. This device operates with a sampling rate of up to 600kSPS and supports both SPI and DSP data interfaces. It is housed in a compact SOT-23-6 package and is supplied on a tape and reel for efficient surface mounting. The AD7476SRTZ-REEL offers a wide analog and digital supply voltage range of 2.35V to 5.25V, with an internal reference. Its robust operating temperature range of -55°C to 125°C makes it suitable for applications in industrial, automotive, and medical instrumentation sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | SPI, DSP |
| Reference Type | Supply |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply, Analog | 2.35V ~ 5.25V |
| Voltage - Supply, Digital | 2.35V ~ 5.25V |
| Sampling Rate (Per Second) | 600k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | SOT-23-6 |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
