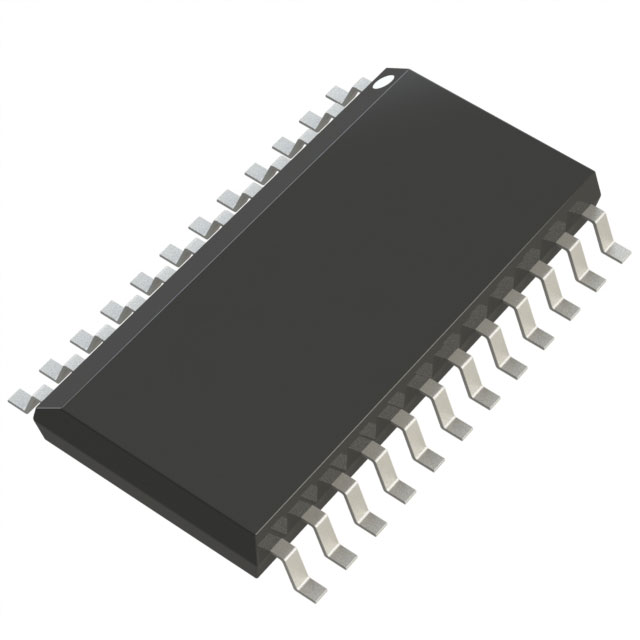

AD7472YR-REEL7
IC ADC 12BIT SAR 24SOICManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD7472YR-REEL7 is a 12-bit successive approximation analog-to-digital converter (ADC). This component features a single-ended input and a single SAR architecture, providing a 1:1 ratio for sample-and-hold to ADC conversion. The device operates with analog and digital supply voltages ranging from 2.7V to 5.25V and boasts a sampling rate of up to 1.5MSPS. The AD7472YR-REEL7 is supplied in a 24-SOIC package suitable for surface mounting and operates across an industrial temperature range of -40°C to 125°C. Its robust specifications make it suitable for applications in industrial automation, medical equipment, and data acquisition systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-SOIC (0.295"", 7.50mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 1.5M |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 24-SOIC |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
