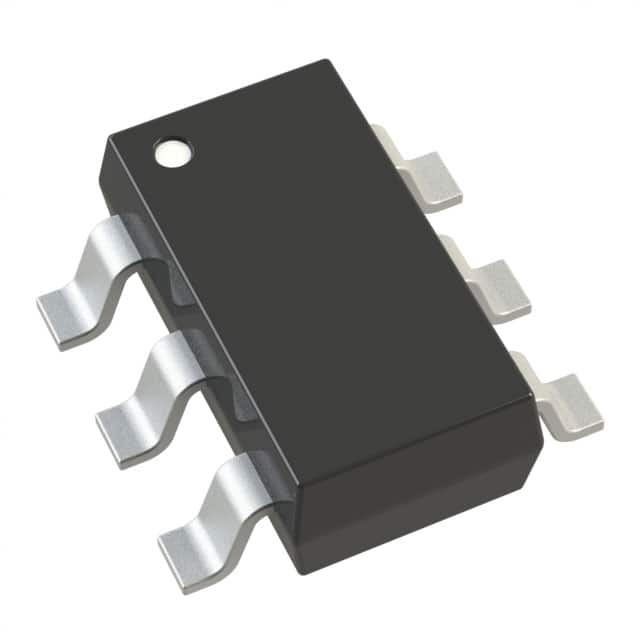

AD7466BRTZ-REEL7
IC ADC 12BIT SAR SOT23-6Manufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD7466BRTZ-REEL7 is a 12-bit successive approximation register (SAR) analog-to-digital converter (ADC). This single-input device supports both SPI and DSP serial interfaces and operates with an analog and digital supply voltage range of 1.6V to 3.6V. Featuring a sampling rate of up to 200 kSPS, it utilizes a supply reference and a 1:1 S/H to ADC ratio. The component is housed in a compact SOT-23-6 surface-mount package, supplied on a tape and reel. Its robust performance makes it suitable for applications in industrial automation, medical instrumentation, and consumer electronics.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | SPI, DSP |
| Reference Type | Supply |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.6V ~ 3.6V |
| Voltage - Supply, Digital | 1.6V ~ 3.6V |
| Sampling Rate (Per Second) | 200k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | SOT-23-6 |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
