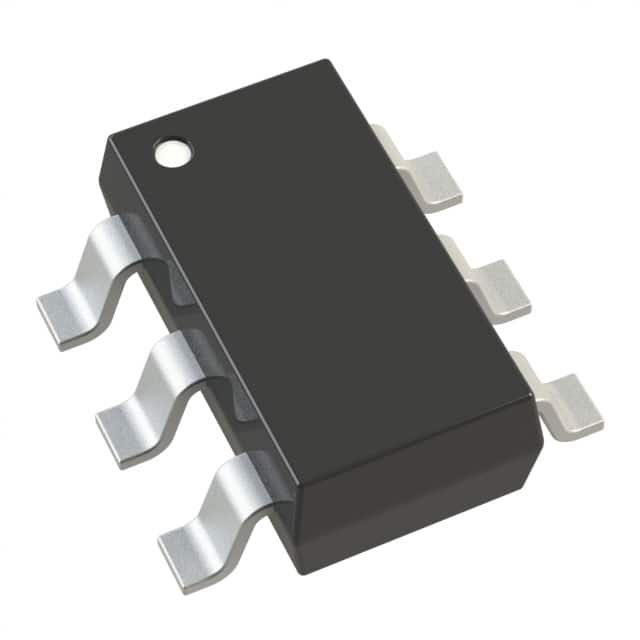

AD7466BRTZ-R2
IC ADC 12BIT SAR SOT23-6Manufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. AD7466BRTZ-R2 is a 12-bit successive approximation analog-to-digital converter (ADC) housed in a SOT-23-6 package. This single-input device features a sampling rate of 200 kSPS and utilizes a track-and-hold (S/H) amplifier. Data is transferred via a serial interface supporting SPI and DSP protocols. The AD7466BRTZ-R2 operates with analog and digital supply voltages ranging from 1.6V to 3.6V, and its reference is derived from the supply. This component is suitable for applications in industrial automation, portable instrumentation, and battery-powered systems. It is supplied in Tape & Reel (TR) packaging and operates within an ambient temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-6 |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | SPI, DSP |
| Reference Type | Supply |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.6V ~ 3.6V |
| Voltage - Supply, Digital | 1.6V ~ 3.6V |
| Sampling Rate (Per Second) | 200k |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | SOT-23-6 |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
