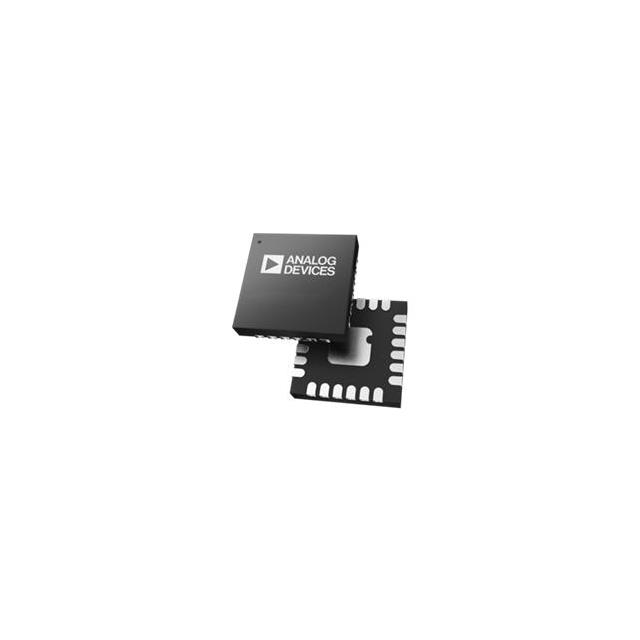

AD7380-4BCPZ
4MSPS 16-BIT QUAD DIFFERENTIAL SManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
16 Bit Analog to Digital Converter 4 Input 4 SAR 24-LFCSP (4x4)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 24-UFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 3V ~ 3.6V |
| Voltage - Supply, Digital | 3V ~ 3.6V |
| Sampling Rate (Per Second) | 4M |
| Input Type | Differential |
| Number of Inputs | 4 |
| Supplier Device Package | 24-LFCSP (4x4) |
| Architecture | SAR |
| Ratio - S/H:ADC | 0:4 |
| Number of A/D Converters | 4 |
Request a Quote
