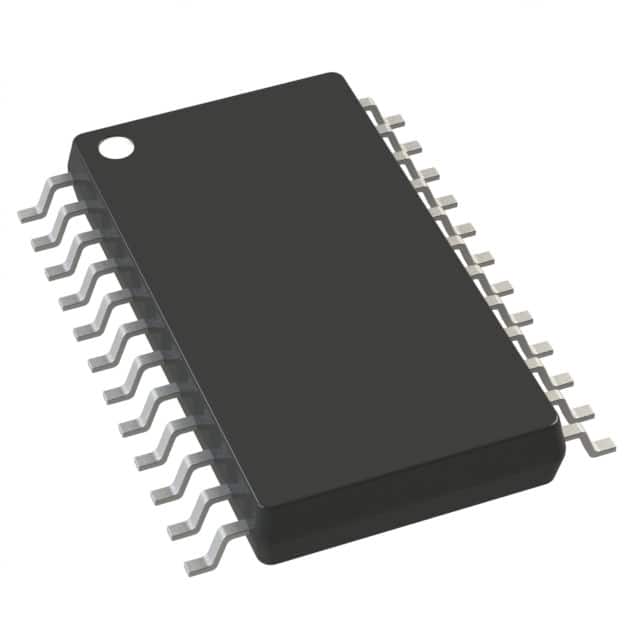

AD7329BRUZ-REEL7
IC ADC 12BIT SAR 24TSSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. iCMOS® series AD7329BRUZ-REEL7 is a 12-bit, 1 MSPS successive approximation analog-to-digital converter. This device features a multiplexer with selectable input configurations, allowing for 4 fully differential, 7 single-ended, or 8 pseudo-differential inputs. The AD7329BRUZ-REEL7 offers true bipolar analog input range with a sampling rate of up to 1 MSPS and utilizes a SPI or DSP compatible serial interface. It operates with analog supply voltages from ±12V to ±16.5V and digital supply voltages from 2.7V to 5.25V across an industrial temperature range of -40°C to 85°C. The component is supplied in a 24-lead TSSOP package, presented on a tape and reel for high-volume automated assembly. Applications include industrial control, data acquisition systems, and portable instrumentation.
Additional Information
Series: iCMOS®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | True Bipolar |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI, DSP |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±12V ~ 16.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 1M |
| Input Type | Differential, Pseudo-Differential, Single Ended |
| Number of Inputs | 4, 7, 8 |
| Supplier Device Package | 24-TSSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
