AD7329BRUZ-REEL

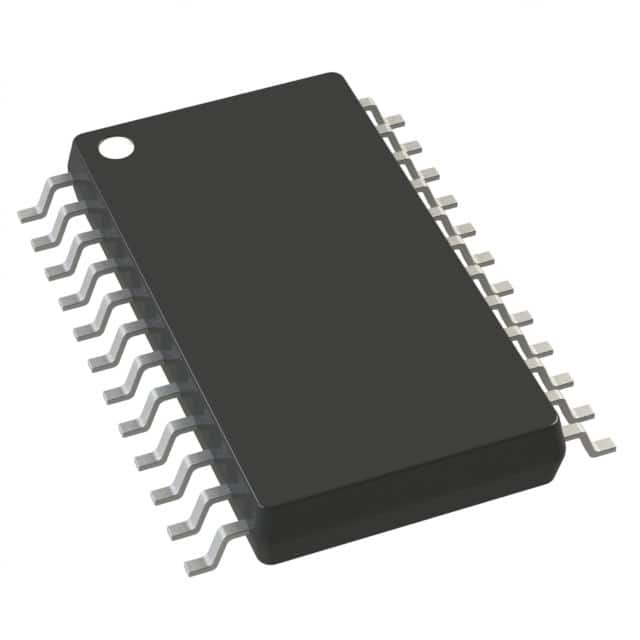

IC ADC 12BIT SAR 24TSSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. AD7329BRUZ-REEL is a 12-bit SAR analog-to-digital converter from the iCMOS® series. This component is designed for high-performance data acquisition, featuring configurable input channels supporting 4, 7, or 8 inputs. It offers true bipolar operation and a sampling rate of up to 1 MSPS. The AD7329BRUZ-REEL supports multiple input configurations including differential, pseudo-differential, and single-ended. Data transfer is facilitated via SPI and DSP compatible interfaces. This device is packaged in a 24-TSSOP (0.173", 4.40mm Width) and supplied in tape and reel for surface mounting. The analog supply voltage range is ±12V to ±16.5V, with a digital supply range of 2.7V to 5.25V. The operating temperature range is -40°C to 85°C. Applications for this component include industrial instrumentation and data acquisition systems.
Additional Information
Series: iCMOS®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | True Bipolar |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI, DSP |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±12V ~ 16.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 1M |
| Input Type | Differential, Pseudo-Differential, Single Ended |
| Number of Inputs | 4, 7, 8 |
| Supplier Device Package | 24-TSSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
