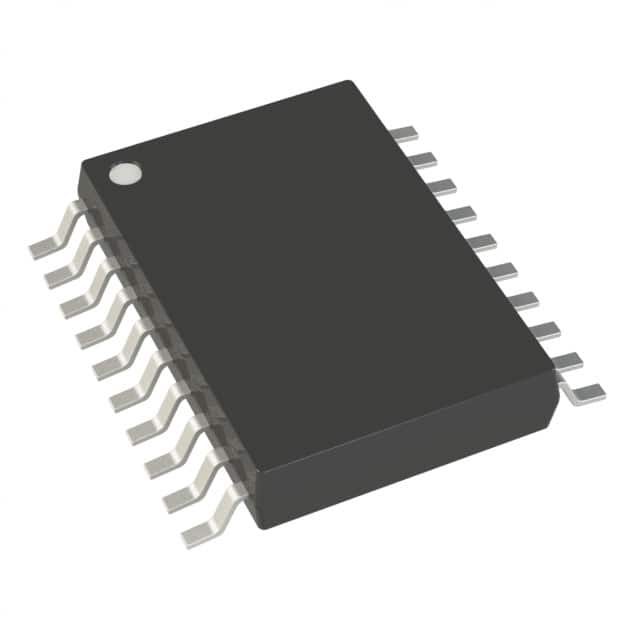

AD7328BRUZ-REEL
IC ADC 12BIT SAR 20TSSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. iCMOS® series AD7328BRUZ-REEL is a 12-bit, successive approximation analog-to-digital converter (ADC). This component features a flexible input configuration supporting 4 differential, 7 pseudo-differential, or 8 single-ended analog inputs. The AD7328BRUZ-REEL offers a 1 MSPS sampling rate and includes a temperature sensor, along with true bipolar input capabilities. Data is transferred via a serial interface compatible with SPI and DSP protocols. The device operates with analog supply voltages ranging from ±12V to ±16.5V and digital supplies from 2.7V to 5.25V. It is supplied in a 20-TSSOP package on tape and reel for surface mounting. This ADC finds application in industrial instrumentation and data acquisition systems.
Additional Information
Series: iCMOS®RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Temperature Sensor, True Bipolar |
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-TSSOP (0.173"", 4.40mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI, DSP |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | ±12V ~ 16.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 1M |
| Input Type | Differential, Pseudo-Differential, Single Ended |
| Number of Inputs | 4, 7, 8 |
| Supplier Device Package | 20-TSSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
