AD7265BCPZ-REEL
IC ADC 12BIT SAR 32LFCSPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD7265BCPZ-REEL is a 12-bit Analog-to-Digital Converter (ADC) featuring a Successive Approximation Register (SAR) architecture. This component offers 6 or 12 selectable input channels and includes two ADCs for simultaneous sampling applications. The device supports a sampling rate of 1 MSPS per channel and interfaces via SPI and DSP protocols. It accepts both external and internal voltage references and operates with analog and digital supply voltages ranging from 2.7V to 5.25V. The AD7265BCPZ-REEL is supplied in a 32-lead LFCSP_VQ (5x5) package, suitable for surface mounting and delivered on tape and reel. This converter is commonly utilized in industrial, medical, and automotive systems requiring precise data acquisition.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |

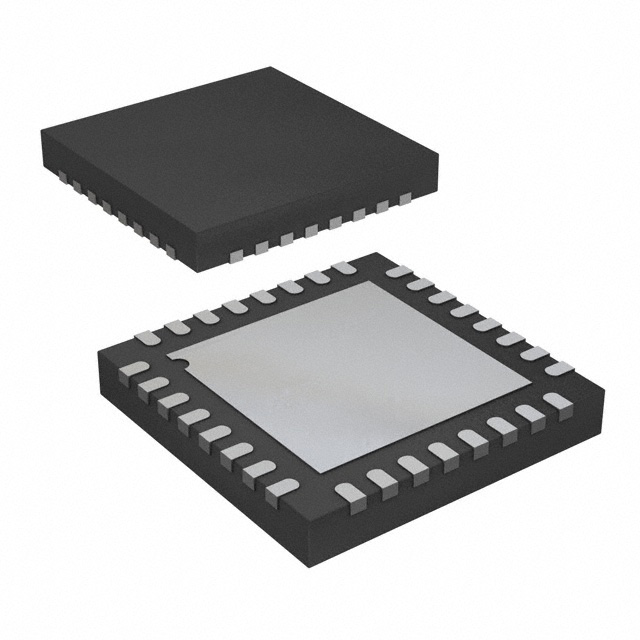

| Package / Case | 32-VFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | MUX-S/H-ADC |
| Data Interface | SPI, DSP |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 1M |
| Input Type | Differential, Pseudo-Differential, Single Ended |
| Number of Inputs | 6, 12 |
| Supplier Device Package | 32-LFCSP-VQ (5x5) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
