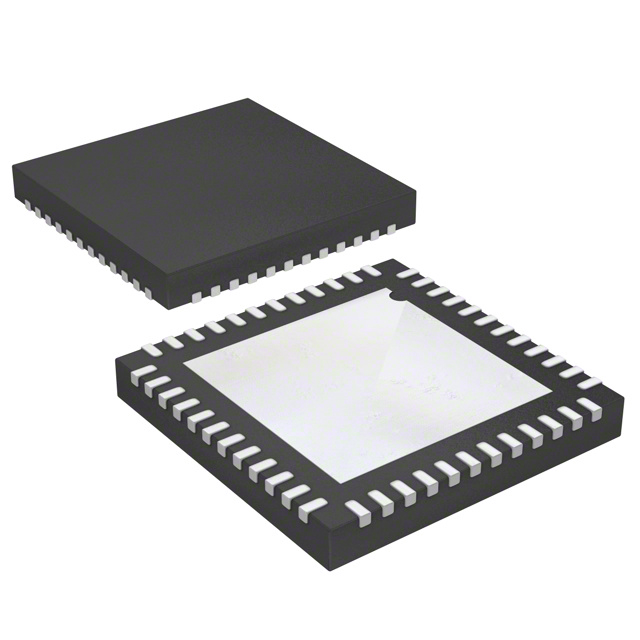

AD7264BCPZ-RL7
IC ADC 14BIT SAR 48LFCSPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD7264BCPZ-RL7 is a 14-bit, 2-channel successive approximation register (SAR) analog-to-digital converter (ADC). This component features simultaneous sampling and includes a programmable gain amplifier (PGA) with a 1:1 S/H to ADC ratio. The AD7264BCPZ-RL7 offers flexible data interfacing via SPI and DSP protocols, catering to demanding applications. It operates with an analog supply voltage of 5V and a digital supply range of 2.7V to 5.25V, with an extended operating temperature range of -40°C to 105°C. The device is supplied in a 48-LFCSP-VQ (7x7) package, presented in tape and reel. This ADC is commonly utilized in industrial, medical, and communications systems requiring high-precision analog signal acquisition.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | PGA, Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | PGA-S/H-ADC |
| Data Interface | SPI, DSP |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 1M |
| Input Type | Differential |
| Number of Inputs | 2 |
| Supplier Device Package | 48-LFCSP-VQ (7x7) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
