AD7193BCPZ-RL
IC ADC 24BIT SIGMA-DELTA 32LFCSPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD7193BCPZ-RL is a 24-bit, high-precision sigma-delta analog-to-digital converter. This component features a flexible input multiplexer supporting 4 differential or 8 pseudo-differential channels, configurable as a PGA. The AD7193BCPZ-RL utilizes a sigma-delta architecture, offering excellent resolution for demanding measurement applications. Data is transferred via an SPI or DSP compatible interface. Supplied in a 32-lead LFCSP (5x5mm) package on tape and reel, it operates across an industrial temperature range of -40°C to 105°C. Analog supply voltage can range from 3V to 5.25V, with digital supply from 2.7V to 5.25V. This device is commonly employed in precision measurement systems, industrial instrumentation, and weighing scales.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | PGA |
| Packaging | Tape & Reel (TR) |

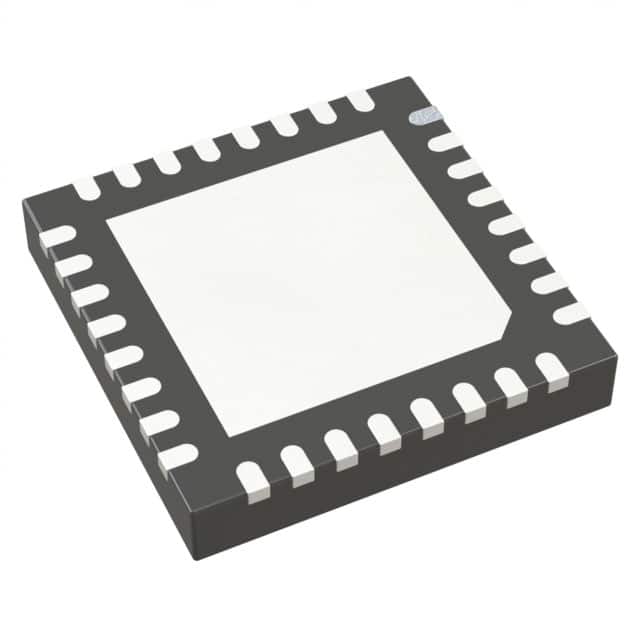

| Package / Case | 32-WFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Number of Bits | 24 |
| Configuration | MUX-PGA-ADC |
| Data Interface | SPI, DSP |
| Reference Type | External |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply, Analog | 3V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | - |
| Input Type | Differential, Pseudo-Differential |
| Number of Inputs | 4, 8 |
| Supplier Device Package | 32-LFCSP (5x5) |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
