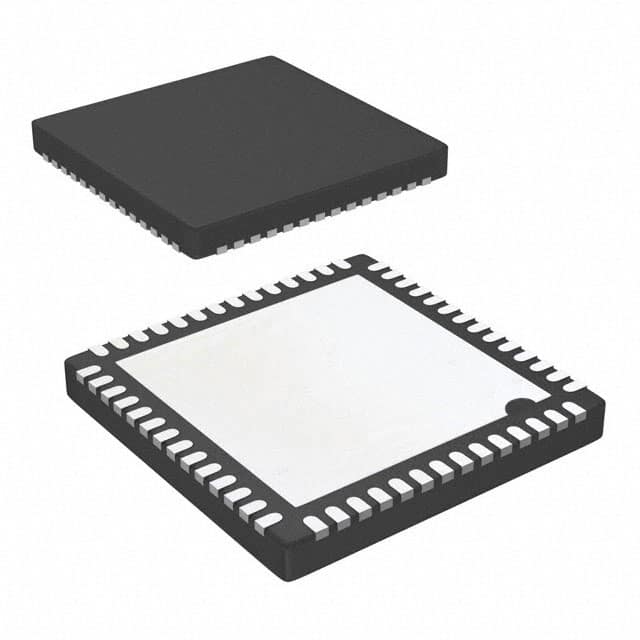

AD7134BCPZ-RL7
IC ADC 24BIT SIGMA-DELTA 56LFCSPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
24 Bit Analog to Digital Converter 4 Input 1 Sigma-Delta 56-LFCSP-WQ (8x8)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tape & Reel (TR) |
| Package / Case | 56-WFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Number of Bits | 24 |
| Configuration | ADC |
| Data Interface | DSP, MICROWIRE, QSPI, Serial, SPI |
| Reference Type | External |
| Operating Temperature | 0°C ~ 85°C |
| Voltage - Supply, Analog | 4.5V ~ 5.5V |
| Voltage - Supply, Digital | 1.65V ~ 1.95V |
| Sampling Rate (Per Second) | 1.5M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 4 |
| Supplier Device Package | 56-LFCSP-WQ (8x8) |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
