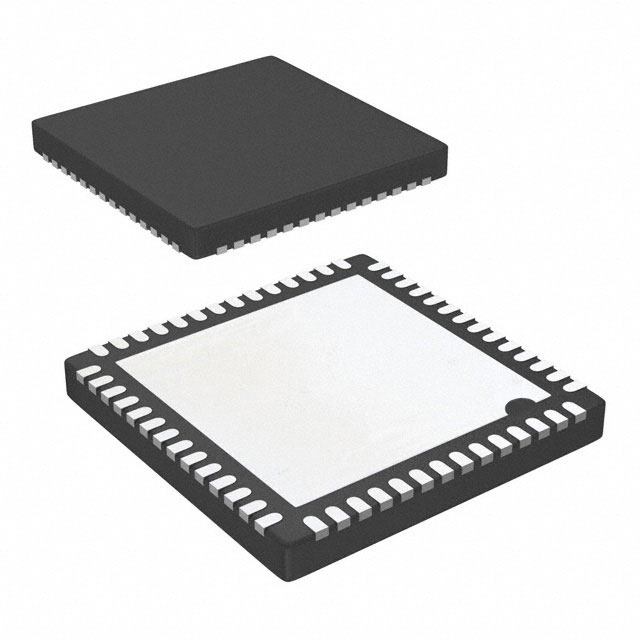

AD7134BCPZ
IC ADC 24BIT SAR 56LFCSPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD7134BCPZ is a 24-bit, 4-channel Analog-to-Digital Converter (ADC) featuring a Successive Approximation Register (SAR) architecture. This component offers a sampling rate of up to 1.5 MSPS per channel. The AD7134BCPZ supports both differential and single-ended inputs and provides a flexible data interface compatible with DSP, MICROWIRE, QSPI, and SPI protocols. It is housed in a 56-lead LFCSP_WQ (8x8) package, suitable for surface mount applications. Key features include external voltage reference support and operation across an analog supply range of 4.5V to 5.5V, with a digital supply of 1.65V to 1.95V. The device is designed for applications in instrumentation, medical imaging, and high-precision data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tray |
| Package / Case | 56-WFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Number of Bits | 24 |
| Configuration | ADC |
| Data Interface | DSP, MICROWIRE, QSPI, Serial, SPI |
| Reference Type | External |
| Operating Temperature | 0°C ~ 85°C |
| Voltage - Supply, Analog | 4.5V ~ 5.5V |
| Voltage - Supply, Digital | 1.65V ~ 1.95V |
| Sampling Rate (Per Second) | 1.5M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 4 |
| Supplier Device Package | 56-LFCSP-WQ (8x8) |
| Architecture | SAR |
| Ratio - S/H:ADC | 0:1 |
| Number of A/D Converters | 1 |
