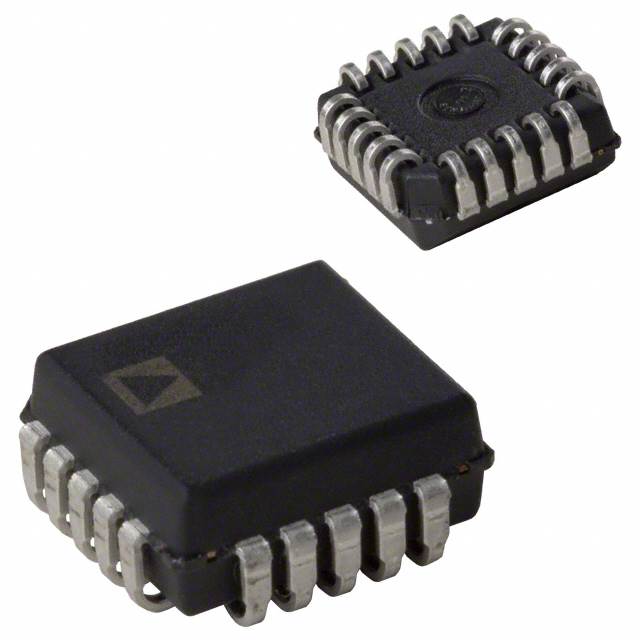

AD670JPZ
IC ADC 8BIT SAR 20PLCCManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD670JPZ is an 8-bit successive approximation analog-to-digital converter (ADC) designed for high-performance applications. This component features a single ADC with two analog inputs and a parallel data interface. The AD670JPZ offers true bipolar operation and an internal voltage reference. Its 20-PLCC (9x9) package is suitable for surface mount applications. The device operates with a single 5V supply for both analog and digital sections, and its operating temperature range is 0°C to 70°C. This ADC is commonly utilized in instrumentation, industrial control systems, and data acquisition equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | True Bipolar |
| Packaging | Bulk |
| Package / Case | 20-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Number of Bits | 8 |
| Configuration | ADC |
| Data Interface | Parallel |
| Reference Type | Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 5V |
| Sampling Rate (Per Second) | - |
| Input Type | Differential |
| Number of Inputs | 2 |
| Supplier Device Package | 20-PLCC (9x9) |
| Architecture | SAR |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
