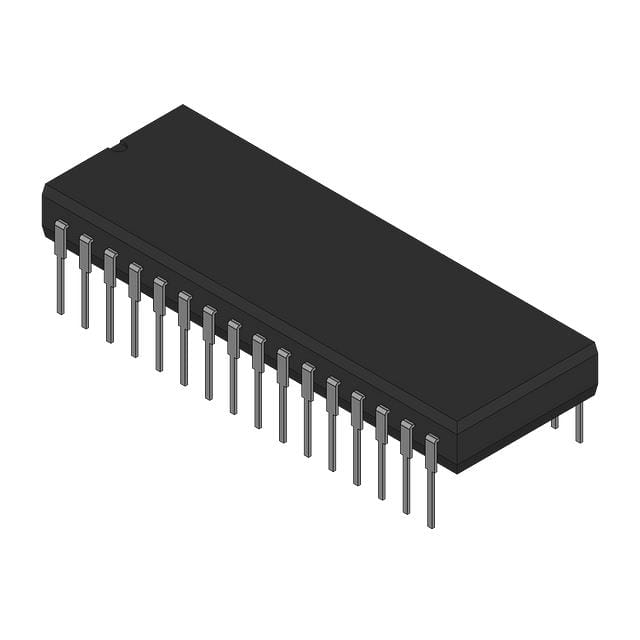

AD579ZJN
10-BIT SAR ADC, 2 CH, PARALLELManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
This Analog Devices Inc. AD579ZJN is a 10-bit successive approximation register (SAR) Analog to Digital Converter. It features a parallel data interface and is designed for surface-mount applications within a 28-SSOP package. The device supports analog supply voltages of ±13.5V to ±16.5V and digital supply voltages of ±11.4V to ±16.5V. Operating across an industrial temperature range of -55°C to 125°C, this component is suitable for demanding applications in aerospace, defense, and industrial automation where precise signal conversion is critical. The AD579 series ADC offers a single analog input and an internal or external voltage reference option.
Additional Information
Series: AD579RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 28-SSOP (0.209"", 5.30mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | ADC |
| Data Interface | Parallel, Serial |
| Reference Type | External, Internal |
| Operating Temperature | -55°C ~ 125°C |
| Voltage - Supply, Analog | ±13.5V ~ 16.5V |
| Voltage - Supply, Digital | ±11.4V ~ 16.5V |
| Sampling Rate (Per Second) | - |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 28-SSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
