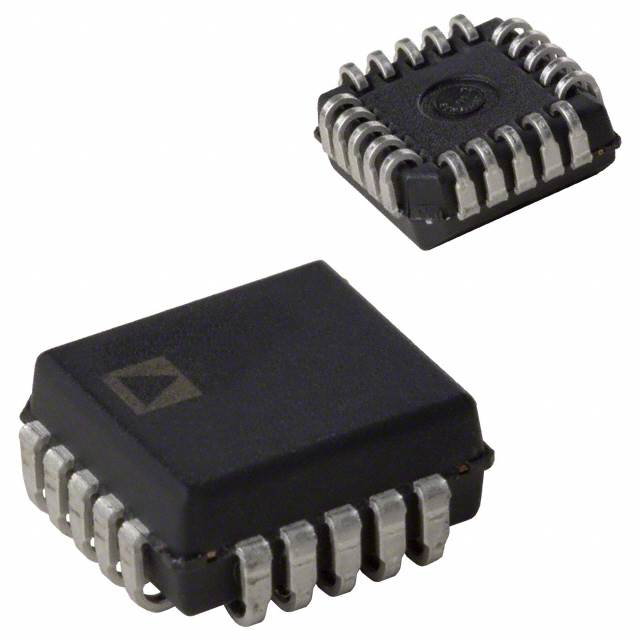

AD573JPZ
IC ADC 10BIT SAR 20PLCCManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. AD573JPZ is a 10-bit successive approximation analog-to-digital converter (ADC). This component features a single analog input and a 1:1 Sample-and-Hold to ADC ratio. It utilizes a parallel data interface and is housed in a 20-PLCC (9x9) surface-mount package. The AD573JPZ operates with analog and digital supply voltages ranging from +4.5V to 7V and -12V to 16.5V, with an operating temperature range of 0°C to 70°C. This device is commonly found in industrial control, instrumentation, and data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 20-LCC (J-Lead) |
| Mounting Type | Surface Mount |
| Number of Bits | 10 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | +4.5V ~ 7V, -12V ~ 16.5V |
| Voltage - Supply, Digital | +4.5V ~ 7V, -12V ~ 16.5V |
| Sampling Rate (Per Second) | - |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 20-PLCC (9x9) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
