AD572BD
12-BIT SAR PARALLEL ADCManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More

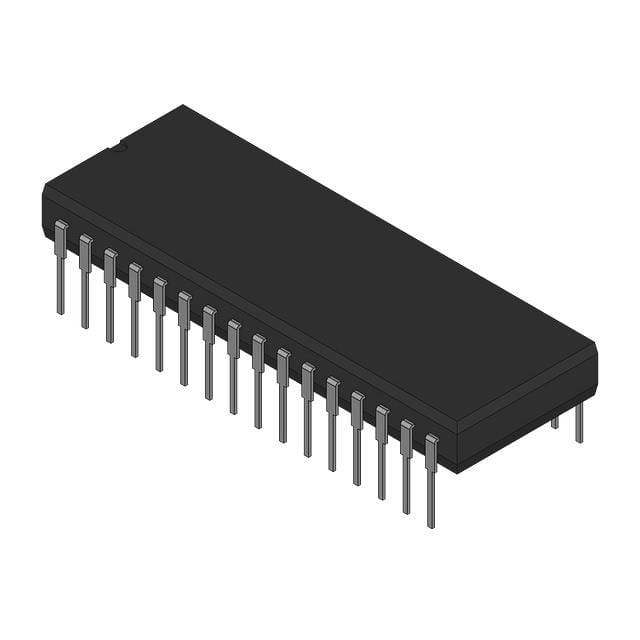

Analog Devices Inc. AD572BD is a 12-bit successive approximation analog-to-digital converter (ADC). This component features a single-ended analog input and a parallel data interface, with an option for serial output. The AD572 series ADC is designed for applications requiring precise conversion, commonly found in industrial automation, test and measurement equipment, and medical instrumentation. It operates with analog and digital supply voltages ranging from 4.75V to 5.25V and has an operating temperature range of -40°C to 85°C. The device is supplied in a 32-lead Side-Brazed Dual In-line Package (SBDIP-H) for through-hole mounting.
Additional Information
Series: AD572RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 32-CDIP (0.910"", 23.12mm) |
| Mounting Type | Through Hole |
| Number of Bits | 12 |
| Configuration | - |
| Data Interface | Parallel, Serial |
| Reference Type | External |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| Sampling Rate (Per Second) | - |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 32-SBDIP-H |
| Architecture | SAR |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
