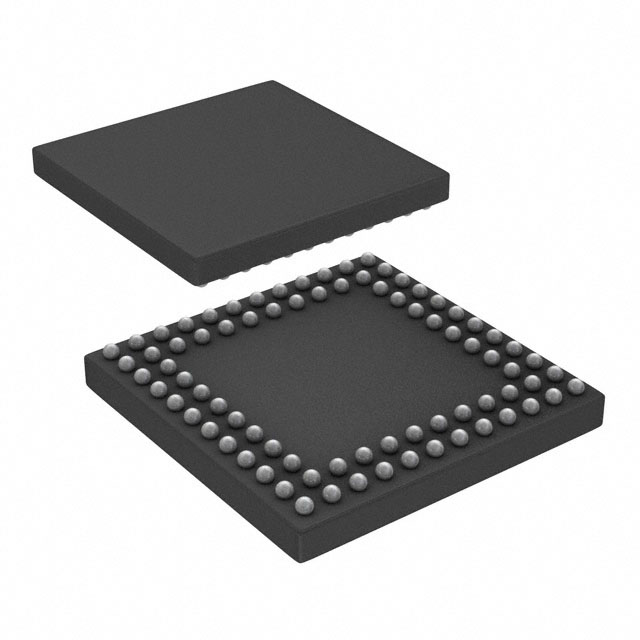

AD5590BBC
IC ADC 12BIT SAR 80CSPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. AD5590BBC is a 12-bit, 16-channel successive approximation analog-to-digital converter (ADC) packaged in an 80-CSPBGA (10x10). This component offers a 1 MSPS sampling rate and supports both external and internal voltage references. Its architecture is configured as a multiplexed sample-and-hold ADC, featuring a single SAR core. The AD5590BBC operates across an analog and digital supply voltage range of 2.7V to 5.25V and is specified for operation between -40°C and 85°C. The parallel data interface facilitates integration into various system designs. This device is suitable for applications in industrial automation, medical instrumentation, and test and measurement equipment.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tray |
| Package / Case | 80-LFBGA, CSPBGA |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | MUX-S/H-ADC |
| Data Interface | Parallel |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.25V |
| Voltage - Supply, Digital | 2.7V ~ 5.25V |
| Sampling Rate (Per Second) | 1M |
| Input Type | Single Ended |
| Number of Inputs | 16 |
| Supplier Device Package | 80-CSPBGA (10x10) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
