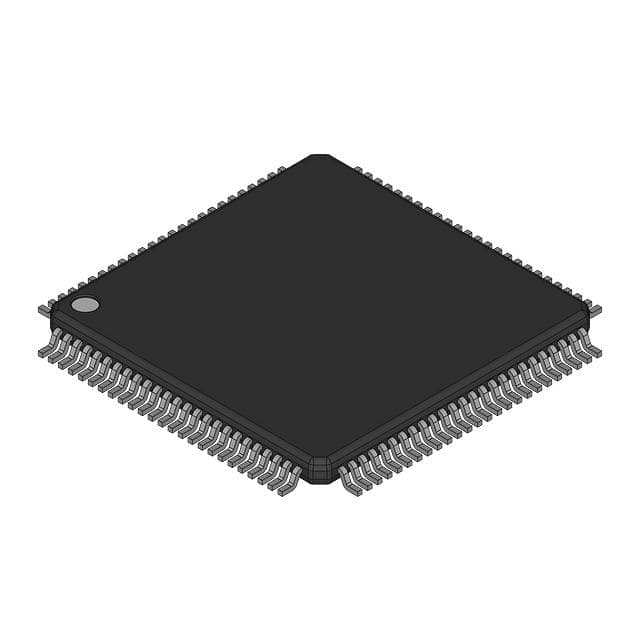

AD1341KZ
16-CHANNEL DATA AQ SYSTEMManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
12 Bit Analog to Digital Converter 1 Input 1 4-STSTAMP™ (0.47x0.47)
Additional Information
Series: AD1341RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Bulk |
| Package / Case | 100-BCQFP |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | MUX-PGA-S/HADC |
| Data Interface | Parallel |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 4.75V ~ 5.25V, ±14.25V ~ 15.75V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V, ±14.25V ~ 15.75V |
| Sampling Rate (Per Second) | - |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 4-STSTAMP™ (0.47x0.47) |
| Architecture | - |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
