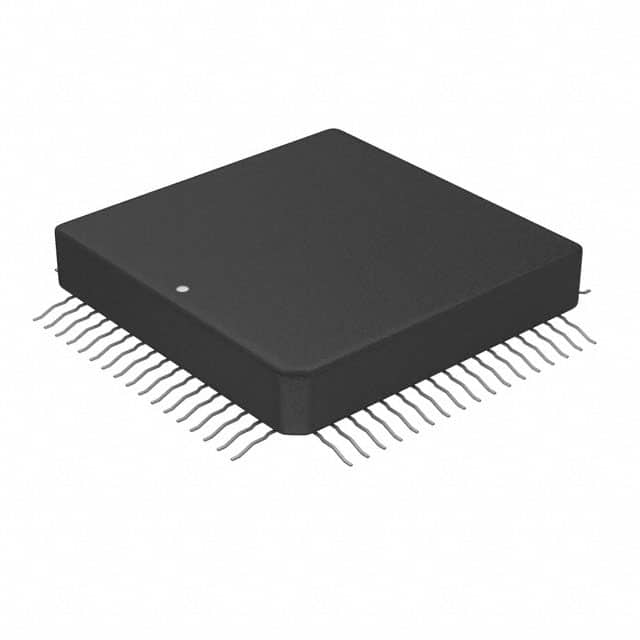

AD10465BZ
IC ADC 14BIT PIPELINED 68CLCCManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD10465BZ, a 14-bit pipelined analog-to-digital converter, offers a 65MSPS sampling rate per channel. This device features two independent ADCs, each with six single-ended inputs and simultaneous sampling capability. The internal reference and a ratio of S/H to ADC of 1:1 contribute to its performance. Designed with a parallel data interface, it is housed in a 68-CLCC package, measuring 24.13x24.13mm, suitable for surface mounting. Operating with an analog supply voltage of 5V and a digital supply range of 3.135V to 3.465V, it functions across an industrial temperature range of -40°C to 85°C. Applications include data acquisition systems, medical imaging, and high-speed test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tray |
| Package / Case | 68-CLCC |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 3.135V ~ 3.465V |
| Sampling Rate (Per Second) | 65M |
| Input Type | Single Ended |
| Number of Inputs | 6 |
| Supplier Device Package | 68-CLCC (24.13x24.13) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
