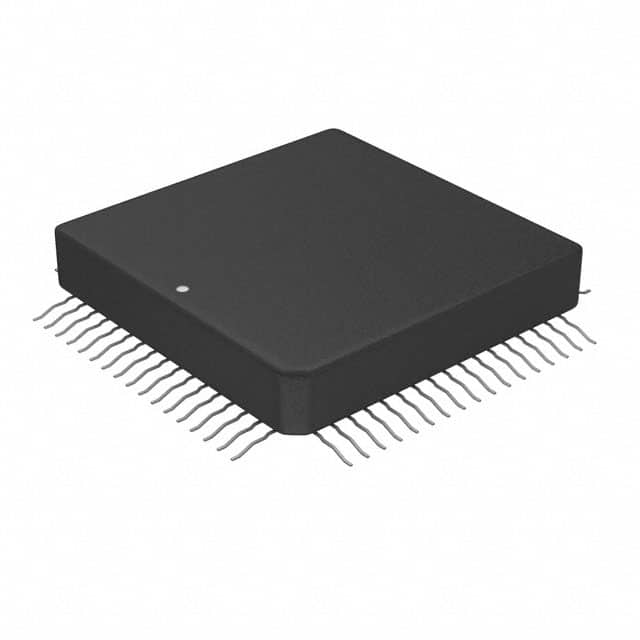

AD10200BZ
IC ADC 12BIT PIPELINED 68CLCCManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. AD10200BZ is a 12-bit pipelined Analog-to-Digital Converter (ADC) featuring a 105 MSPS sampling rate. This component offers two differential inputs, each with simultaneous sampling capabilities. The AD10200BZ utilizes a pipelined architecture, providing high throughput for demanding applications. Data is output via a parallel interface. The device is housed in a 68-CLCC (24.13x24.13) package, suitable for surface mount applications. It operates with analog supply voltages of 5V and digital supply voltages of 3.3V. The AD10200BZ is designed for use in high-speed data acquisition systems, test and measurement equipment, and medical imaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Simultaneous Sampling |
| Packaging | Tray |
| Package / Case | 68-CLCC |
| Mounting Type | Surface Mount |
| Number of Bits | 12 |
| Configuration | S/H-ADC |
| Data Interface | Parallel |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 3.3V |
| Sampling Rate (Per Second) | 105M |
| Input Type | Differential |
| Number of Inputs | 2 |
| Supplier Device Package | 68-CLCC (24.13x24.13) |
| Architecture | Pipelined |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 2 |
