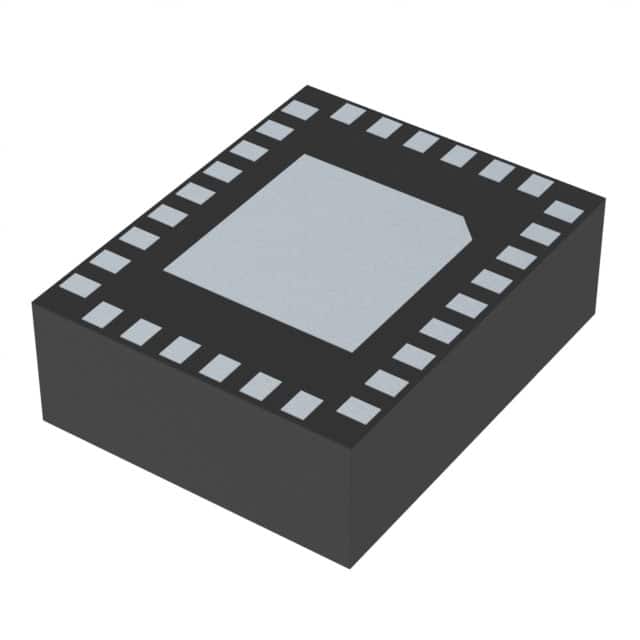

ADGS1414DBCCZ
IC SWITCH SPST X 8 1.8OHM 30LGAManufacturer: Analog Devices Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
8 Circuit IC Switch 1:1 1.8Ohm 30-LGA (4x5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 30-FLGA Exposed Pad |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C |
| On-State Resistance (Max) | 1.8Ohm |
| -3db Bandwidth | 170MHz |
| Supplier Device Package | 30-LGA (4x5) |
| Voltage - Supply, Single (V+) | 5V ~ 20V |
| Voltage - Supply, Dual (V±) | ±4.5V ~ 16.5V |
| Charge Injection | -20pC |
| Crosstalk | -75dB @ 1MHz |
| Switch Circuit | SPST |
| Multiplexer/Demultiplexer Circuit | 1:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 300mOhm |
| Switch Time (Ton, Toff) (Max) | 475ns, 190ns |
| Channel Capacitance (CS(off), CD(off)) | 20pF, 21pF |
| Current - Leakage (IS(off)) (Max) | 30pA |
| Number of Circuits | 8 |
Request a Quote
