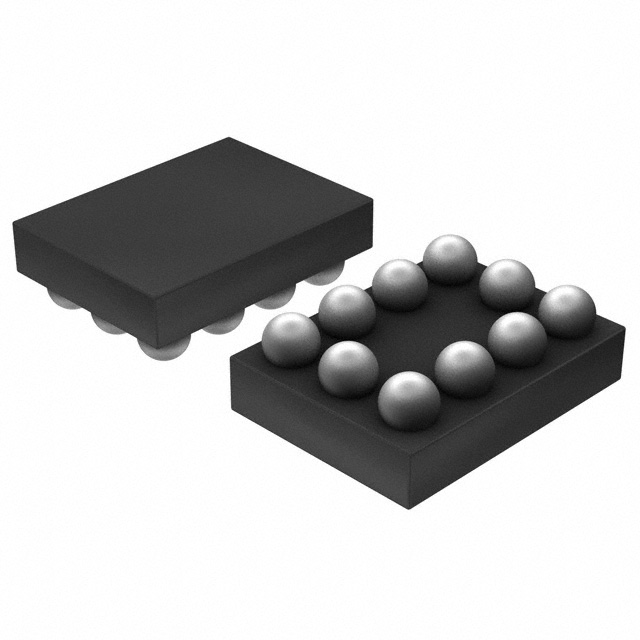

ADG884BCBZ-REEL7
IC SWITCH SPDTX2 370MOHM 10WLCSPManufacturer: Analog Devices Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
2 Circuit IC Switch 2:1 370mOhm 10-WLCSP (2x1.5)
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-UFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 370mOhm |
| -3db Bandwidth | 18MHz |
| Supplier Device Package | 10-WLCSP (2x1.5) |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 125pC |
| Crosstalk | -120dB @ 100kHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 10mOhm |
| Switch Time (Ton, Toff) (Max) | 50ns, 20ns |
| Channel Capacitance (CS(off), CD(off)) | 103pF |
| Current - Leakage (IS(off)) (Max) | 200pA (Typ) |
| Number of Circuits | 2 |
Request a Quote
