ADG858BCPZ-REEL

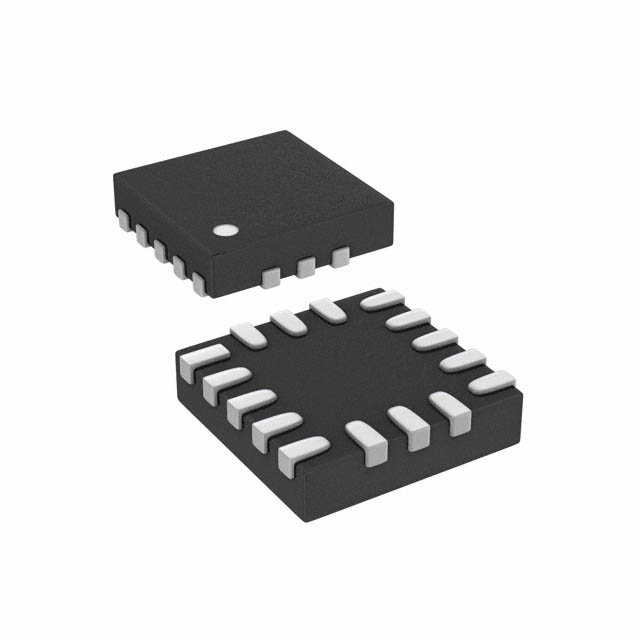

IC SWITCH SPDTX2 720MOHM 16LFCSPManufacturer: Analog Devices Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
Analog Devices Inc. ADG858BCPZ-REEL is a dual 2:1 analog multiplexer/demultiplexer. This device features two independent SPDT (Single Pole Double Throw) switches, each capable of handling signals across a 1.8V to 5.5V single supply range. The ADG858BCPZ-REEL offers a low on-resistance of 720mOhm maximum, with channel-to-channel resistance matching of 40mOhm. Its -3dB bandwidth extends to 70MHz, and it exhibits low charge injection of 45pC. Crosstalk is specified at -85dB at 100kHz. The device is housed in a compact 16-LFCSP-UQ package and is supplied on tape and reel. It is suitable for applications in industrial automation, consumer electronics, and medical devices.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-UFQFN, CSP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 85°C (TA) |
| On-State Resistance (Max) | 720mOhm |
| -3db Bandwidth | 70MHz |
| Supplier Device Package | 16-LFCSP-UQ (2.1x2.1) |
| Voltage - Supply, Single (V+) | 1.8V ~ 5.5V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 45pC |
| Crosstalk | -85dB @ 100kHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:2 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 40mOhm |
| Switch Time (Ton, Toff) (Max) | 27ns, 12ns |
| Channel Capacitance (CS(off), CD(off)) | 25pF |
| Current - Leakage (IS(off)) (Max) | 10pA (Typ) |
| Number of Circuits | 2 |
