ADG836YCPZ-REEL

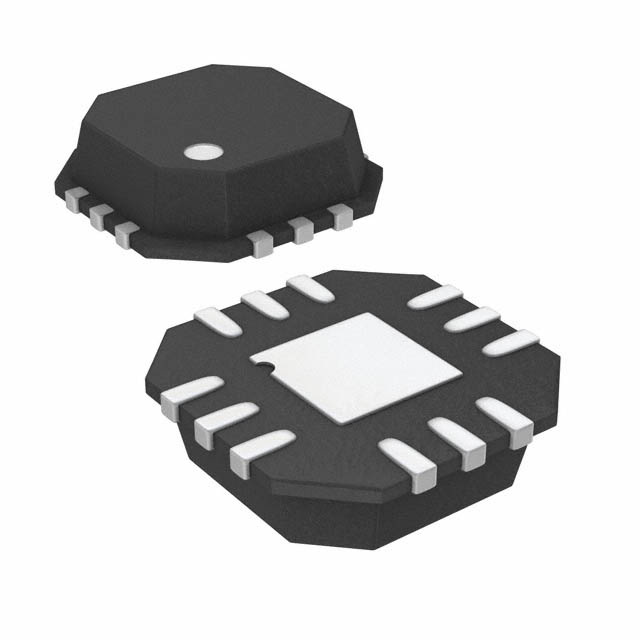

IC SWITCH SPDTX2 650MOHM 12LFCSPManufacturer: Analog Devices Inc.
Categories: Analog Switches, Multiplexers, Demultiplexers
Quality Control: Learn More
The Analog Devices Inc. ADG836YCPZ-REEL is a dual, 2:1 analog switch featuring low on-resistance of 650mOhm maximum. This SPDT switch operates from a single 1.65V to 3.6V supply and exhibits a typical charge injection of 40pC. With a -3dB bandwidth reaching 57MHz and excellent channel-to-channel matching of 40mOhm (?Ron), it is suitable for applications demanding precise signal routing. Crosstalk is rated at -90dB at 100kHz, and leakage current (IS(off)) is a low 200pA typical. The component is supplied in a 12-LFCSP-VQ (3x3) package for surface mounting, delivered on tape and reel. Its performance characteristics make it applicable in various industries, including consumer electronics and industrial automation.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-VFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Operating Temperature | -40°C ~ 125°C (TA) |
| On-State Resistance (Max) | 650mOhm |
| -3db Bandwidth | 57MHz |
| Supplier Device Package | 12-LFCSP-VQ (3x3) |
| Voltage - Supply, Single (V+) | 1.65V ~ 3.6V |
| Voltage - Supply, Dual (V±) | - |
| Charge Injection | 40pC |
| Crosstalk | -90dB @ 100kHz |
| Switch Circuit | SPDT |
| Multiplexer/Demultiplexer Circuit | 2:1 |
| Channel-to-Channel Matching (ÃŽ”Ron) | 40mOhm |
| Switch Time (Ton, Toff) (Max) | 26ns, 7ns |
| Channel Capacitance (CS(off), CD(off)) | 25pF |
| Current - Leakage (IS(off)) (Max) | 200pA (Typ) |
| Number of Circuits | 2 |
